Matco-Norca 206PX03FLF Lead Free PEX Sillcock 1/2 in x 3/4 in (MN-206PX03FLF)

Product Description

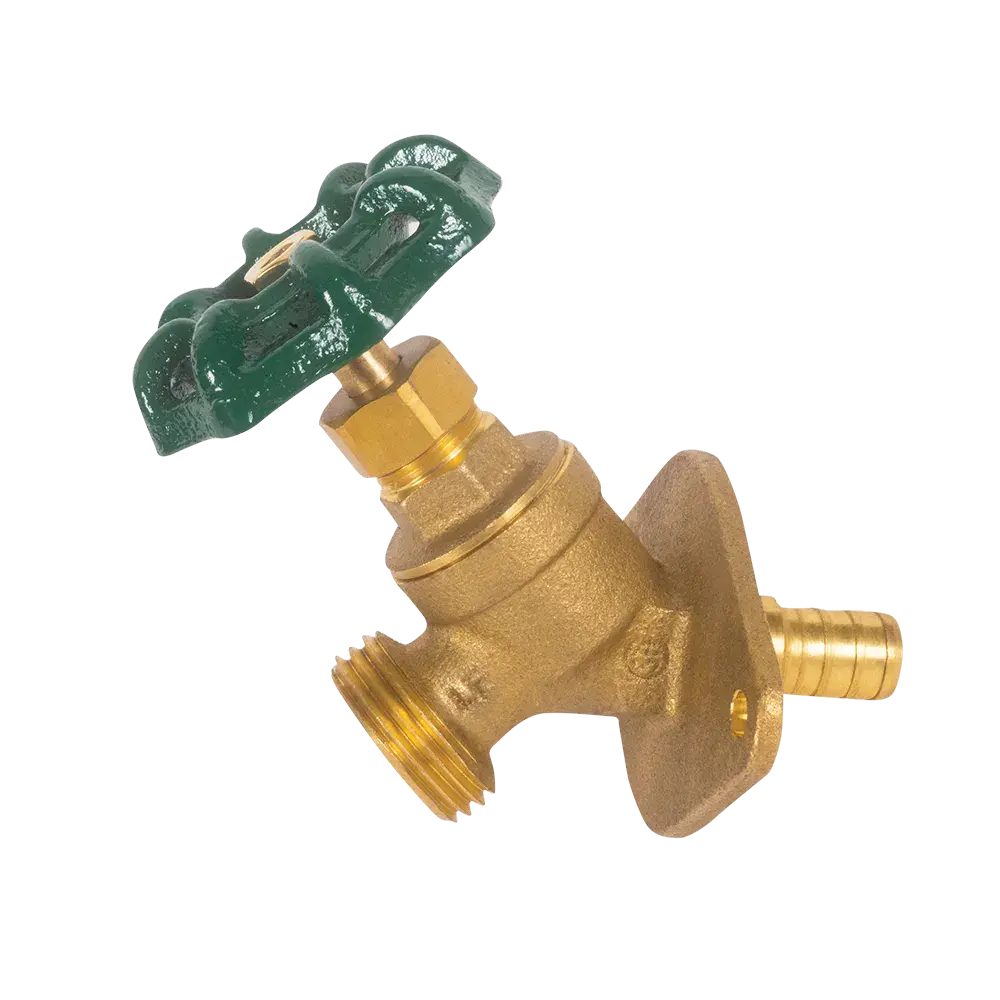

The Matco-Norca 206PX03FLF is a lead-free PEX sillcock with a large-flange brass body designed for exterior wall installations. It features a 1/2 in PEX inlet and a 3/4 in male hose thread outlet for hose x PEX connections, rated 125 WOG with a 160 F maximum temperature. The unit includes a cast iron handwheel, flanged mounting for wall installation, and meets ANSI/NSF 61 and ANSI/NSF 372. Dimensions are approximately 2 in high by 2 in long.

• Lead-free brass body with large flange for flanged wall mounting
• 1/2 in PEX inlet x 3/4 in male hose thread outlet for hose x PEX connections
• 125 WOG pressure rating, 160 F maximum temperature, ANSI/NSF 61 and ANSI/NSF 372 compliant

Product Highlights

Lead-free brass large-flange sillcock; 1/2 in PEX to 3/4 in MHT; 125 WOG; 160 F max.

Product Information

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: 206PX03FLF

Technical Specifications

• Brand: Matco-Norca
• Manufacturer Part Number: 206PX03FLF
• Alternate Part Number: MN-206PX03FLF
• Figure Number: 206PX03FLF
• Product Name: Lead free PEX sillcock - large flange - brass body
• Connection: Hose x PEX
• Inlet Size: 1/2 in PEX
• Outlet Size: 3/4 in male hose thread (MHT)
• Pressure Rating: 125 WOG
• Maximum Temperature: 160 F
• Body Material: Lead-free brass
• Handle Type: Cast iron handwheel
• Mounting Type: Large flange (flanged wall mounting)
• Standards: ANSI/NSF 61; ANSI/NSF 372
• Suitable For: Exterior wall installations
• Dimensions: Approximately 2 in height x 2 in length
• UPC: 082647210745
