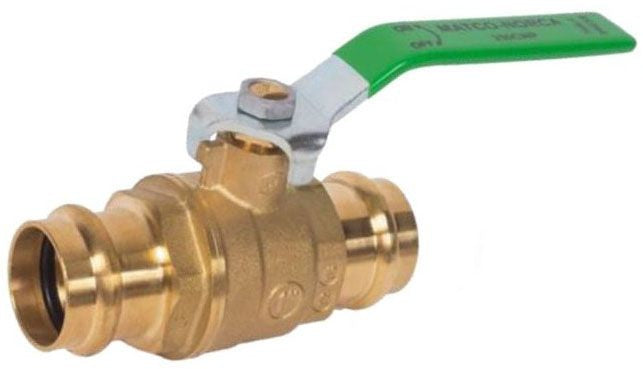

Matco-norca 18360 Press Ball Valve 1 Inch Full Port

Product Description

The MATCO-NORCA 18360 is a 1-inch press-end ball valve designed for professional plumbing installations where lead-free compliance is required. Built to a 600 WOG (Water, Oil, Gas) pressure rating and 150 WSP (Working Steam Pressure), this full-port valve delivers unrestricted flow with minimal pressure drop across the valve body. The press-end connection eliminates open flame during installation, making it a practical choice for tight spaces and retrofit work. Licensed plumbers and mechanical contractors install this valve in potable water, hydronic, and light commercial piping systems.

This valve is suited for residential and light commercial plumbing applications where a full-bore shutoff is needed at a 1-inch pipe size. The press-end configuration is compatible with standard press-fit tooling and copper or compatible press-fit pipe systems. Its lead-free construction meets regulatory requirements for potable water systems, including installations subject to state and federal lead-free mandates.

Key Features

• Lead-free construction meets potable water lead-free compliance requirements
• Full-port design for unrestricted flow with minimal pressure drop
• 600 WOG pressure rating for broad fluid and gas service
• 150 WSP working steam pressure rating
• Press-end connection eliminates torch work during installation
• 1-inch pipe size for common residential and light commercial applications

Compatibility

Designed as an OEM-style press ball valve for use in 1-inch press-fit piping systems requiring lead-free, full-port shutoff service.

Installation Notes

Installation must be performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and relieve system pressure before installing or servicing this valve. Use a calibrated press tool matched to the fitting size and jaw type specified for the pipe system. Do not apply open flame or solder to the valve body or press fittings at any point during installation.

Technical Specifications

• Size: 1 inch
• Port: Full Port
• Pressure Rating: 600 WOG
• Steam Pressure Rating: 150 WSP
• Lead Free: Yes

Standard Information

• Brand: MATCO-NORCA
• Manufacturer Part Number: 18360
