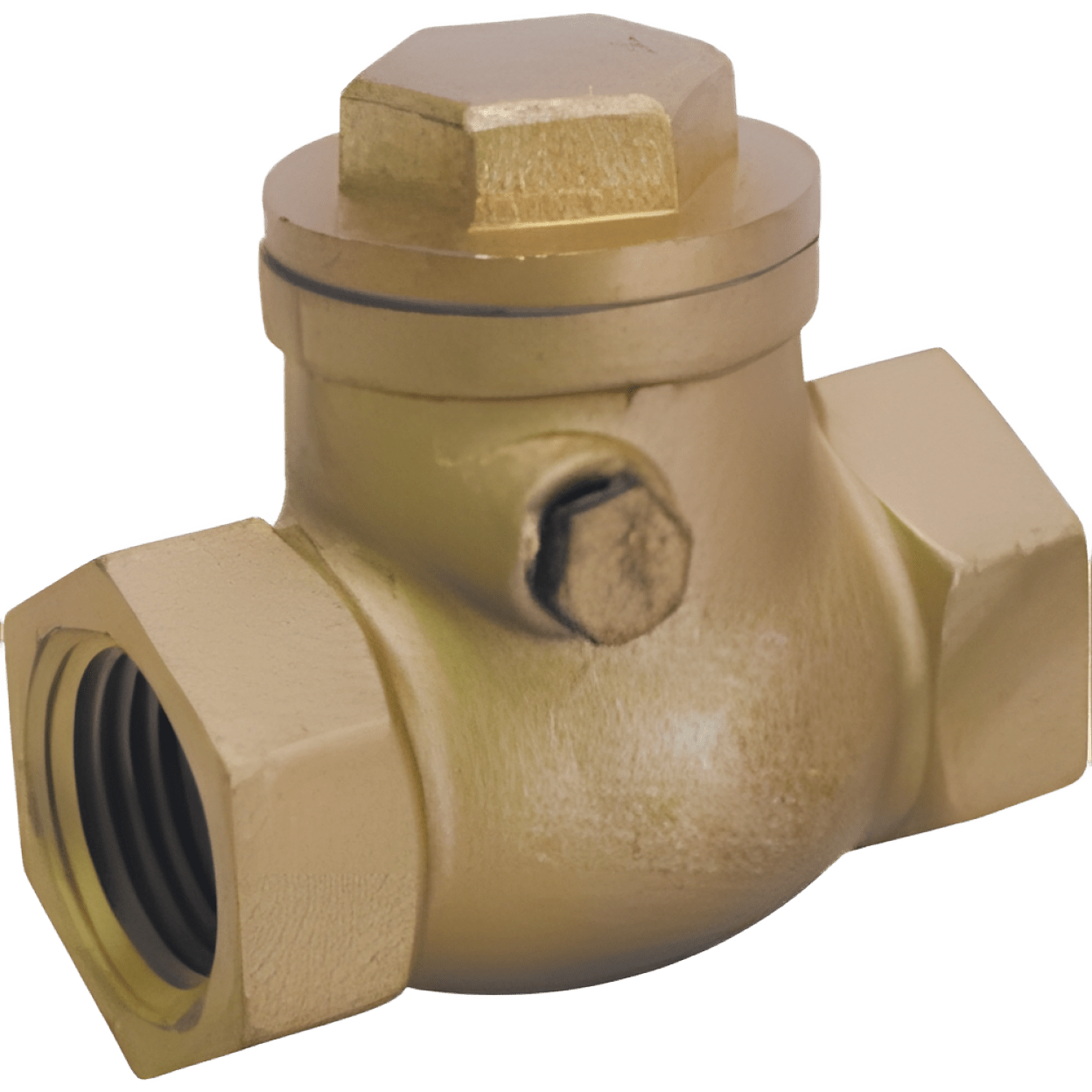

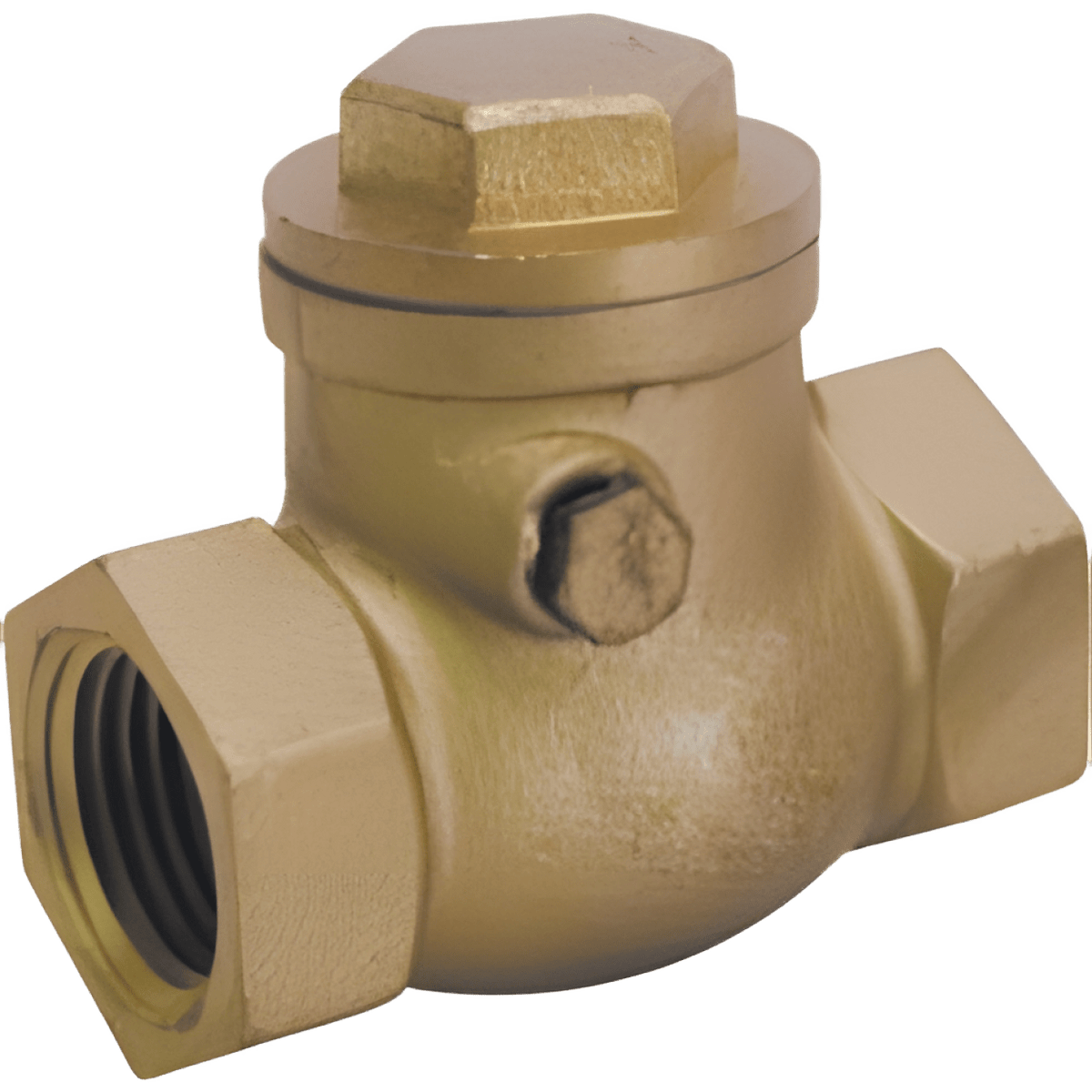

Matco-Norca 101-008NL 2 Inch Brass Swing Check Valve, Imported, Lead-Free, FIP x FIP

Product Description

The Matco-Norca 101-008NL is a 2 inch brass swing check valve designed for various applications. This valve features FNPT connections and is made from lead-free brass, meeting high safety standards. With a pressure rating of 200 psi for water, oil, and gas, and 125 psi SWP, this valve is suitable for commercial and light industrial use.

• Material: Lead-free brass.
• Dimensions: H: 2.74 inch, L: 4.22 inch.
• Standards compliant with MSS-SP-82.

Product Highlights

This swing check valve ensures proper flow direction and protects against backflow. Ideal for installations in residential, commercial, and industrial settings.

Product Information

Standard Information

• Part Number: 101-008NL
• Brand: Matco-Norca

Technical Specifications

• Type: Swing
• Nominal Size: 2 inch
• Connection Type: FNPT x FNPT
• Body Material: C85710 Lead Free Brass
• Pressure Rating: 200 psi Water Oil and Gas, 125 psi SWP
• Standards: MSS-SP-82
• Dimensions: Height - 2.74 inch; Length - 4.22 inch
• Additional Information: C85710 Brass Cap, C85710 Brass Disc, C36000 Brass Bolt, A1100 Aluminum Name Plate, C37700 Brass Pin
