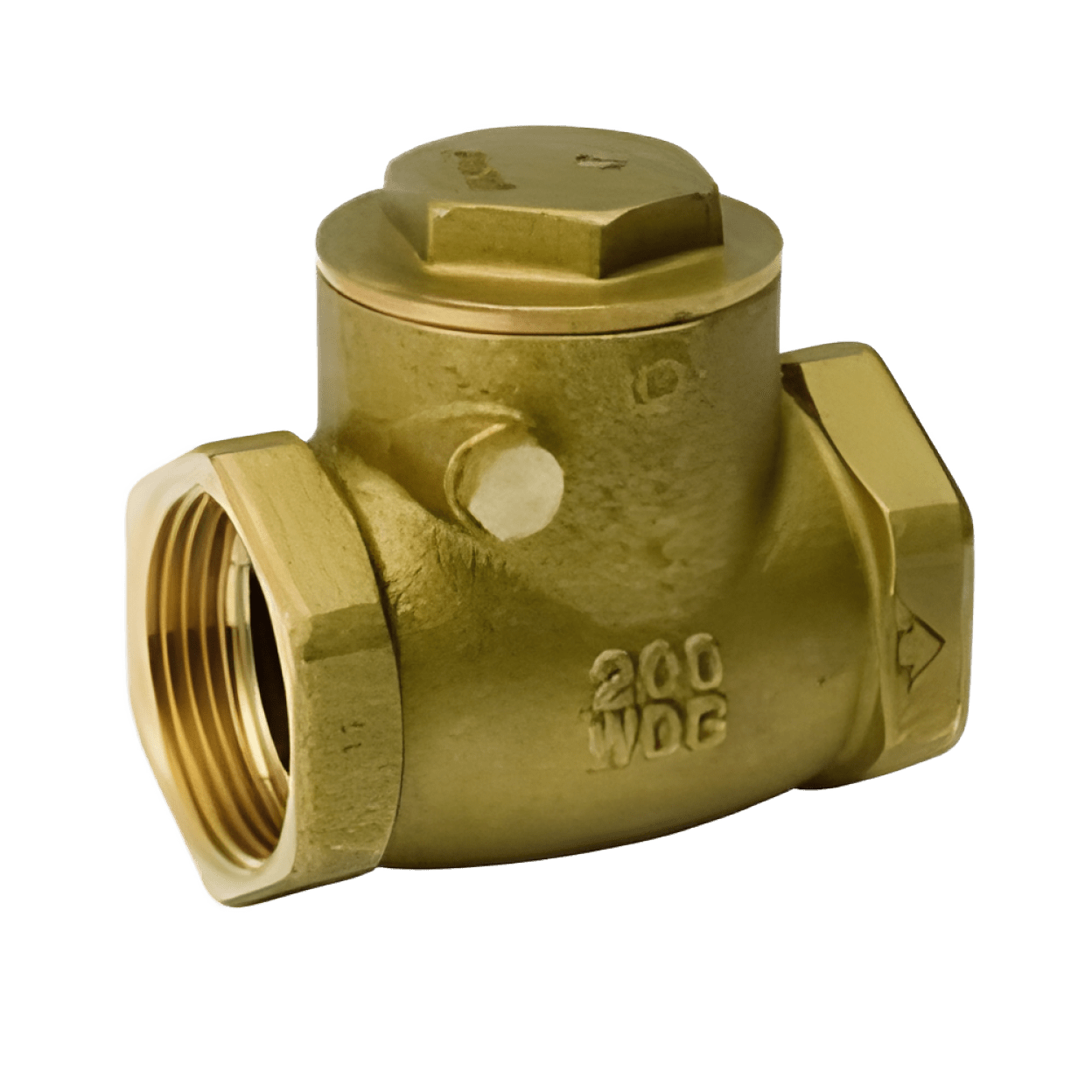

Matco-Norca 101-003NL 1/2 Inch Brass Swing Check Valve, Imported, Lead-Free, FIP x FIP

Product Description

The Matco-Norca 101-003NL is a half-inch brass swing check valve designed for reliable performance in various applications. This valve features FNPT x FNPT connections, making it suitable for water, oil, gas, or steam industries.

• Brass construction meets C85710 lead-free standards.
• Pressure rated for 200 psi in water, oil, and gas applications.
• Complies with MSS-SP-82 standards for consistent quality.

Product Highlights

This valve is ideal for commercial and light industrial use, ensuring efficient flow control and backflow prevention.

Product Information

Standard Information

• Brand: Matco-Norca
• MPN: 101-003NL

Technical Specifications

• Type: Swing
• Nominal Size: 1/2 inch
• Connection Type: FNPT x FNPT
• Body Material: C85710 Lead Free Brass
• Pressure Rating: 200 psi Water Oil and Gas, 125 psi SWP
• Dimensions: Dimension H: 1.42 inch; Dimension L: 2.09 inch
• Standards: MSS-SP-82
• Additional Information: C85710 Brass Cap, C85710 Brass Disc, C36000 Brass Bolt, A1100 Aluminum Name Plate, C37700 Brass Pin
