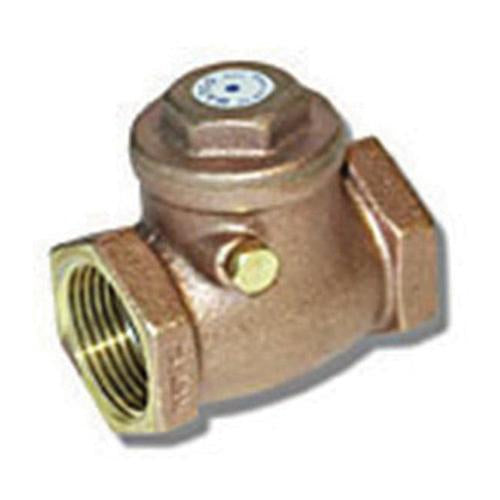

Matco 521T10LF Swing Check Valve, 3 Inch, Threaded, 200 psi, Brass Body

Product Description

The MATCO 521T10LF swing check valve is a 3-inch threaded valve with a 200 psi pressure rating and a brass body. This valve is suitable for use with gas, oil, and water. It features a brass disc, nut, pin, plug, and cap, along with a Buna-N seat. The valve's dimensions are 5.79 inches in length.

• Lead free
• Integral seat
• Standard/Approvals: ANSI B2.1/ B16.18

Product Highlights

This lead-free swing check valve is designed for durability and compatibility with various media.

Product Information

Standard Information

• Brand: MATCO
• Manufacturer Part Number: 521T10LF

Technical Specifications

• Brand: MATCO
• MPN: 521T10LF
• Series: 521
• Nominal Size: 3 Inch
• End Style: Threaded
• Pressure Rating: 200 psi
• Media: Gas, Oil, Water
• Body Material: Brass
• Trim Material: Brass Disc, Nut, Pin, Plug and Cap
• Softgoods Material: Buna-N Seat
• Dimensions: 5.79 Inch L
• Selling Unit: EA
• Temperature Rating: 180 deg F
• ConnectionType: IPS
• Disc Material: Brass
• Inlet to Outlet Length: 5.77 in
• Lead-Free/Contains Lead: Lead-Free
• Seat Material: Brass
