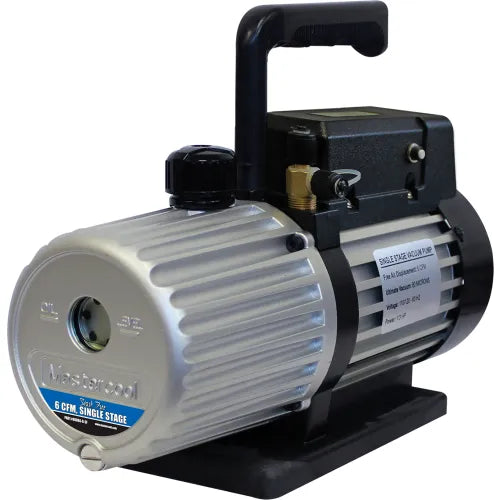

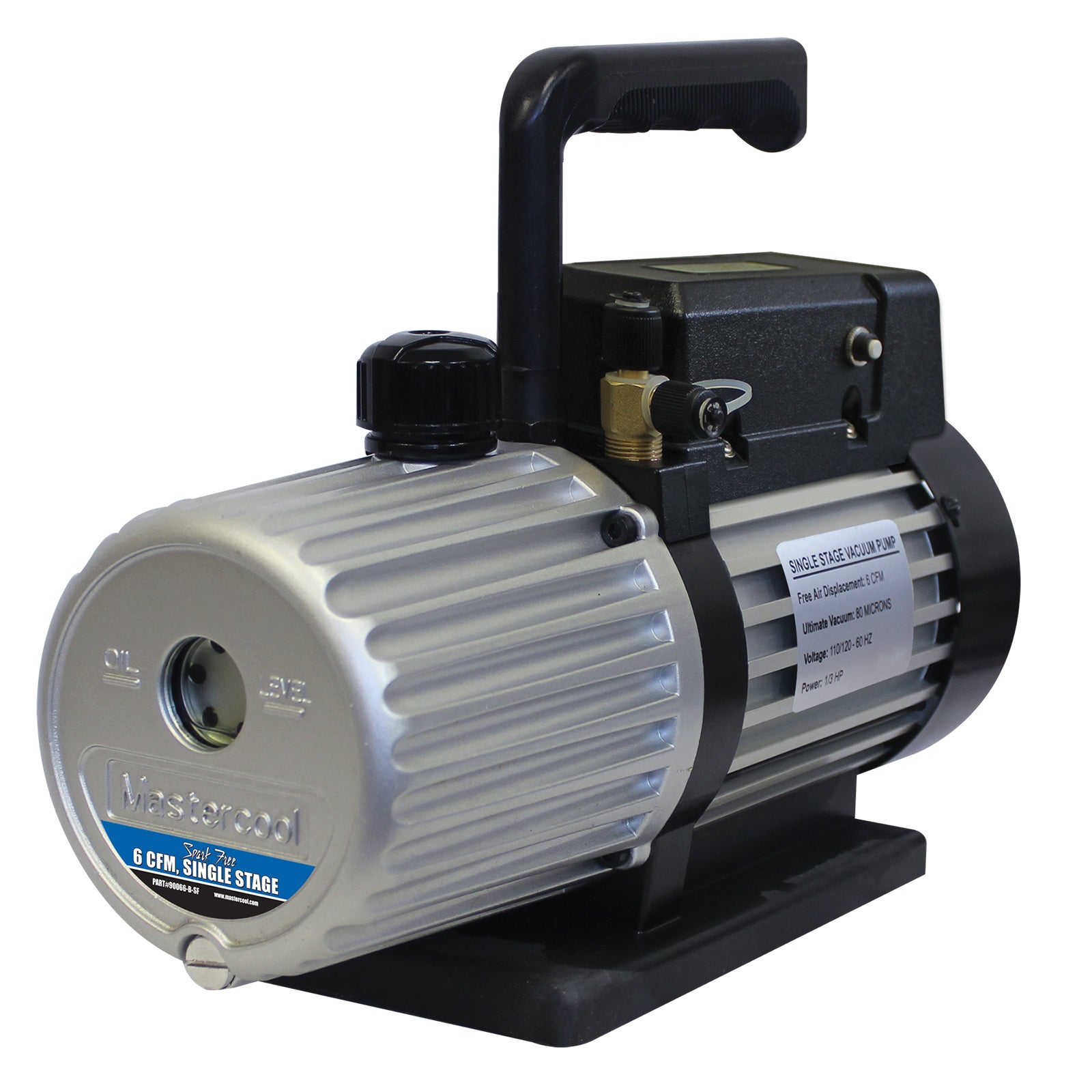

Mastercool 90066-B-SF Single Stage Spark Free Vacuum Pump, 6 CFM

Product Description

The Mastercool 90066-B-SF single-stage vacuum pump features spark-free components and a high-volume fan to cool the motor and pump. The vapor discharge/oil fill port is easily removable and contains an internal check valve to prevent oil escape. It has a thermally protected motor with an on/off rocker switch and a large oil level sight glass.

• Constructed with spark free components
• High volume fan provides cool air to the motor and pump
• Internal check valve to prevent oil backflow

Product Highlights

This vacuum pump is durable and time-tested, designed to withstand demanding conditions and provide years of reliable service. Approved for all A/C refrigerants including A2L and A3 flammable refrigerants.

Product Information

Standard Information

• Brand: MASTERCOOL
• Manufacturer Part Number: 90066-B-SF

Technical Specifications

• CFM: 6 CFM
• Brand: Mastercool
• Hertz: 60 Hz
• Voltage: 110, 220 V
• Width: 6.5 in
• Height: 11 in
• Length: 15 in
• No. of Stages: 1
• Free Air Displacement: 6 CFM
• Ultimate Vacuum: 80 Microns
• Pump Motor: 1/3 HP
• Pump Speed: 1720 RPM
• Oil Capacity: 18 oz / 536 ml
