Mastercool 44184-S45 Capillary Hose with Straight x 45 Fittings

Product Description

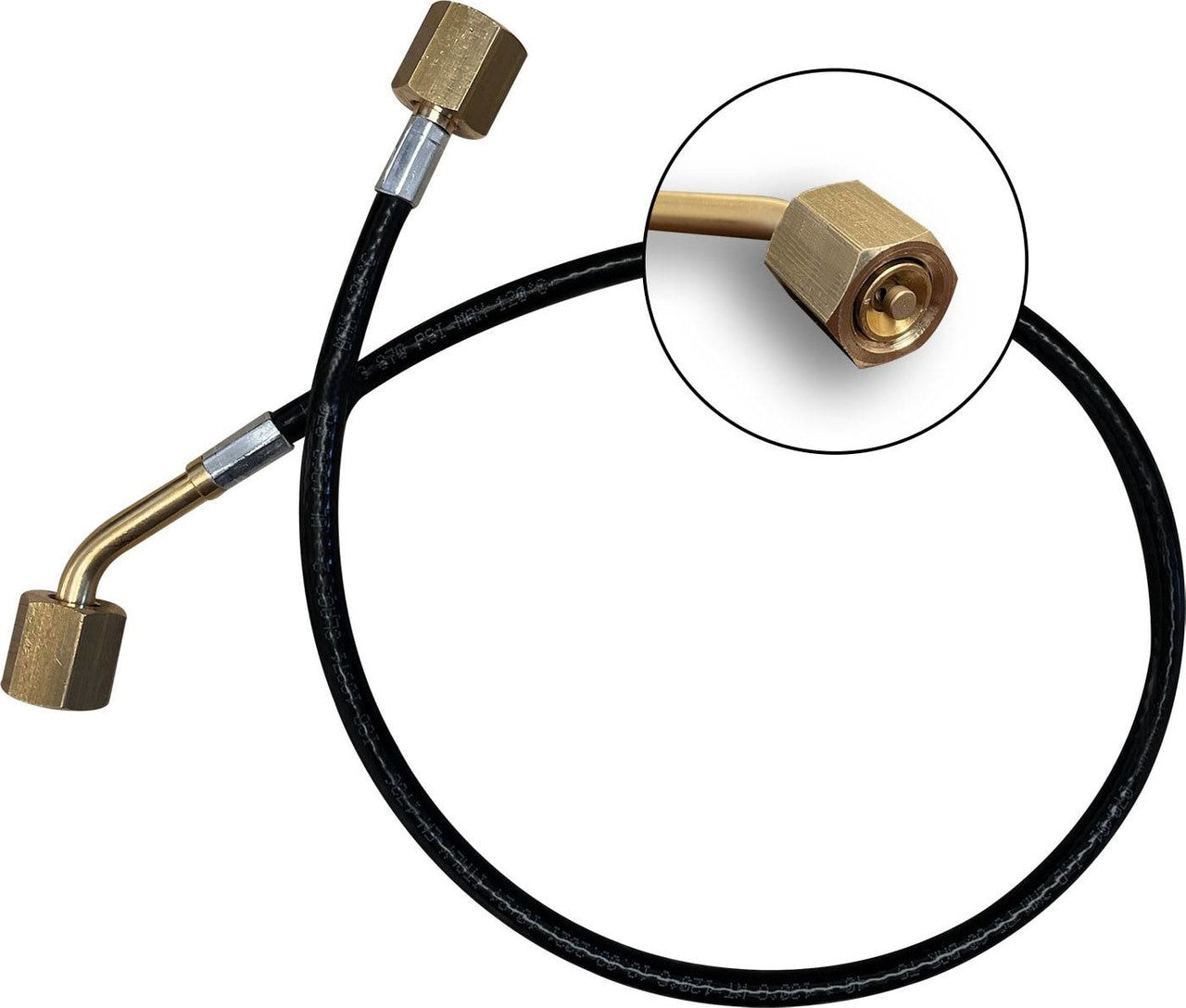

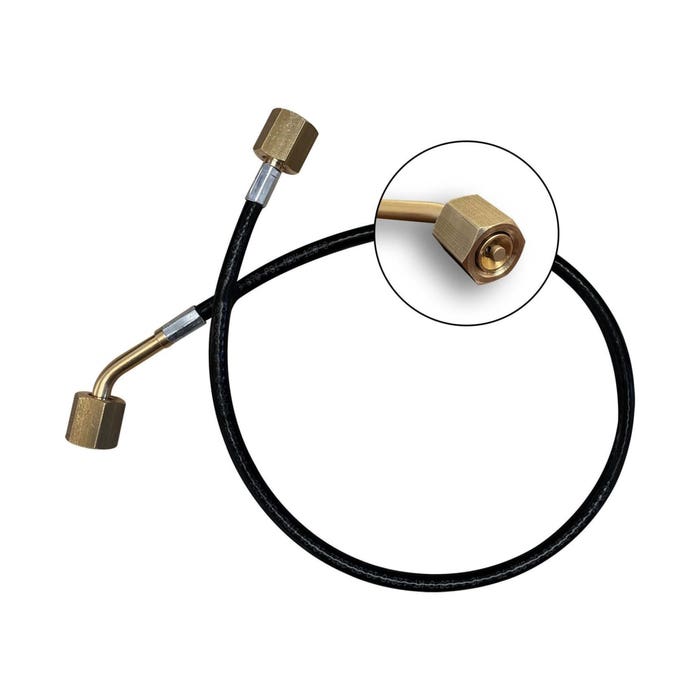

The Mastercool 44184-S45 is an eighteen-inch capillary hose designed for efficient connections to components such as pressure switches, gauges, and oil circuits in refrigeration and air conditioning systems. This product features straight x 45-degree fittings with a depressor, ensuring a reliable connection without the need for brazing or bending.

• Capillary hose length of eighteen inches (450 mm)

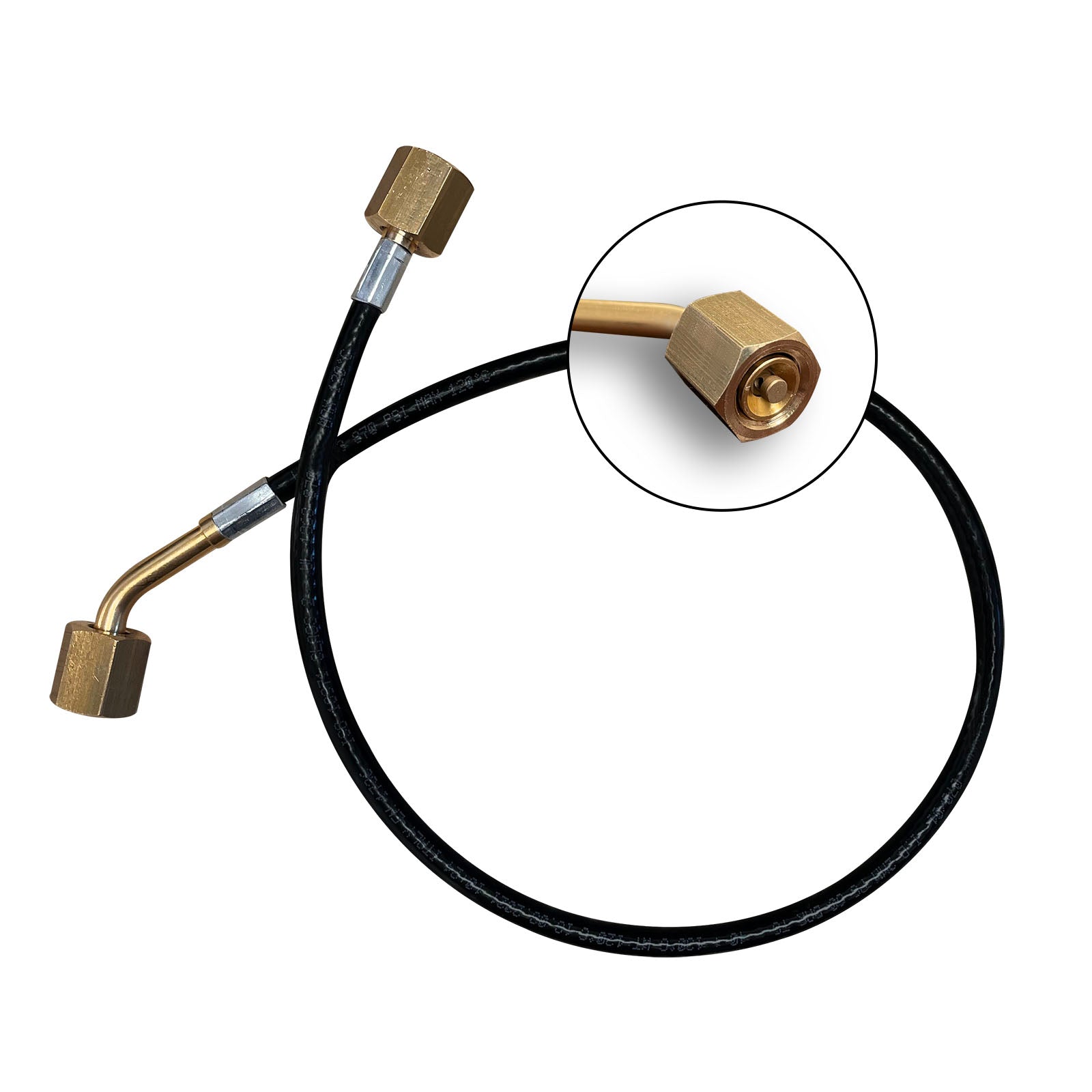

• Comes with straight x 45-degree fittings including a depressor
• Easy installation without brazing or flaring required

Product Highlights

The Mastercool 44184-S45 hose offers noise reduction and vibration absorption, enhancing the overall performance of HVAC systems.

Product Information

Standard Information

• Brand: Mastercool
• Condition: New

Technical Specifications

• Length: Eighteen inches (450 mm)
• Inner Diameter: Two mm
• Outer Diameter: Five point nine mm
• Tolerances: Zero point one mm
• Bending Radius: Ten mm
• Maximum Allowable Pressure: Eight hundred seventy PSI (60 bar)
• Temperature Working: Two hundred forty-eight degrees Fahrenheit (120 degrees Celsius)
• Temperature Allowable: From negative forty to two hundred sixty-six degrees Fahrenheit (negative forty to one hundred thirty degrees Celsius)
• Standards: EN 1736 and ISO 13971, Class 2
