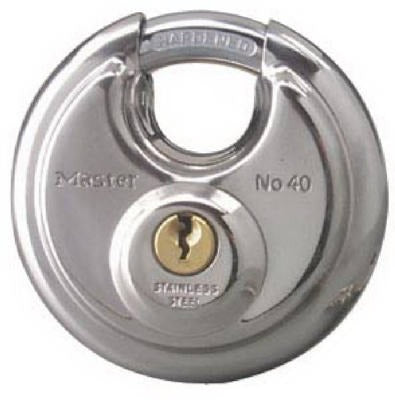

Master Lock Co 40KAD-0501 Shielded Disc Padlock

Product Description

The MASTER LOCK CO 40KAD-0501 is a shielded disc padlock built for high-security applications where resistance to forced entry and cutting is a priority. The disc-shaped stainless steel body is engineered to repel direct attacks, while two interior anti-saw levers protect against cutting attempts on the body itself. The hardened steel shackle measures 0.75 inches in length and 0.375 inches in diameter, and the pin tumbler mechanism features double locking deadbolt action for added security. This padlock is keyed alike to key code 0501, making it a practical choice for facilities requiring multiple locks on a single key. Compatible key blanks include Master Lock K1BOX or Ilco M1 TV 320-952.

This padlock is suited for securing gates, equipment enclosures, storage units, and utility access points in commercial, industrial, and trade environments. The keyed-alike configuration is commonly used in facilities management, rental properties, job sites, and anywhere a technician or manager needs one key to operate multiple locks. The disc body design provides inherent shackle protection by limiting exposure, making it appropriate for outdoor or exposed installations where bolt cutters and pry tools are a concern.

Key Features

• Disc-shaped stainless steel body resists forced and corrosive attacks
• Two interior anti-saw levers protect against body-cutting attempts
• Hardened steel shackle rated for high-tensile resistance
• Pin tumbler lock with double locking deadbolt action
• Keyed alike to code 0501 for multi-lock single-key convenience
• Compatible with Master Lock key blank K1BOX or Ilco blank M1 TV 320-952

Compatibility

Keyed alike to Master Lock key code 0501. Accepts Master Lock key blank K1BOX or Ilco key blank M1 TV 320-952. Designed as a high-security disc padlock for commercial and industrial access control applications.

Installation Notes

Installation requires no special tools beyond the supplied key. Before installing on gates, enclosures, or electrical access panels, confirm the hasp or staple opening accommodates the 0.375-inch shackle diameter. In electrical or utility applications, ensure power is isolated and all relevant lockout/tagout procedures are followed before securing the lock. Inspect the mounting hasp for wear or damage that could compromise overall security.

Technical Specifications

• Body Shape: Disc
• Body Material: Stainless Steel
• Shackle Material: Hardened Steel
• Shackle Length: 0.75 inches
• Shackle Diameter: 0.375 inches
• Body Width: 2.75 inches
• Lock Mechanism: Pin Tumbler with Double Locking Deadbolt Action
• Keying: Keyed Alike to Code 0501
• Weight: 3.9 pounds
• Package Quantity: 6 per package
• Unit of Measure: EA

Standard Information

• Brand: MASTER LOCK CO
• Manufacturer Part Number: 40KAD-0501
