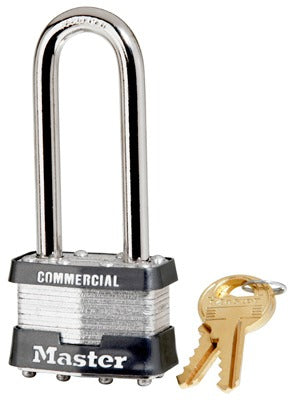

Master Lock Co 1KALJ-2730 Laminated Padlock Keyed Alike

Product Description

The MASTER LOCK CO 1KALJ-2730 is a laminated steel padlock built for trade and commercial applications where multiple locks must operate from a single key. The body measures 1-3/4 inches wide, with a 2-1/2 inch long shackle and a 5/16 inch shackle diameter, making it suited for securing hasps, chains, gates, and equipment enclosures. Keyed alike to the 2730 keyway, this padlock accepts Master Lock key blank K1BOX or Ilco blank M1 TV 320-952, giving service technicians and facilities personnel a straightforward rekeying and key duplication path. Sold in a boxed unit of measure.

This laminated padlock is appropriate for light industrial, commercial, and residential use. Common applications include HVAC equipment lockout, electrical panel access control, gate and storage enclosure security, and job-site equipment staging. The keyed-alike configuration is particularly useful when a technician or facilities manager needs one key to open several padlocks across a site, reducing key ring complexity and improving workflow efficiency. The 2-1/2 inch shackle length provides clearance for standard hasp loops and chain links without excessive exposed shackle.

Key Features

• Keyed alike to 2730 keyway for single-key access across multiple locks
• 2-1/2 inch long shackle provides clearance for hasps and chain applications
• 5/16 inch shackle diameter balances cut resistance with compatibility
• 1-3/4 inch laminated body construction for durability
• Compatible with Master Lock key blank K1BOX or Ilco blank M1 TV 320-952
• Sold individually (EA unit of measure), available in quantities of 6

Compatibility

Keyed alike to Master Lock 2730 keyway. Compatible with key blanks K1BOX (Master Lock) and Ilco blank M1 TV 320-952.

Installation Notes

Installation requires no tools beyond the key. Before securing a padlock on any electrical enclosure or HVAC disconnect, confirm the circuit is de-energized and follow OSHA lockout/tagout (LOTO) procedures as applicable. Ensure the hasp or chain loop diameter is compatible with the 5/16 inch shackle before installation. Inspect the shackle and body for damage before each use in safety-critical applications.

Technical Specifications

• Body Width: 1-3/4 inches
• Shackle Length: 2-1/2 inches
• Shackle Diameter: 5/16 inches
• Keyway: Keyed Alike to 2730
• Compatible Key Blanks: Master Lock K1BOX, Ilco M1 TV 320-952
• Weight: 0.6 pounds
• Unit of Measure: EA
• Package Quantity: 6

Standard Information

• Brand: MASTER LOCK CO
• Manufacturer Part Number: 1KALJ-2730
