Master Lock 5KALF-A1223 No. 5 Keyed Alike (1-1/2 inches Shackle)

Product Description

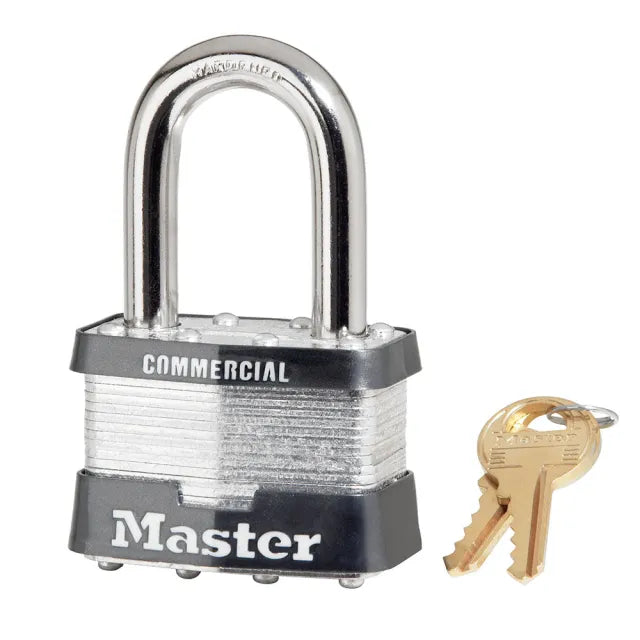

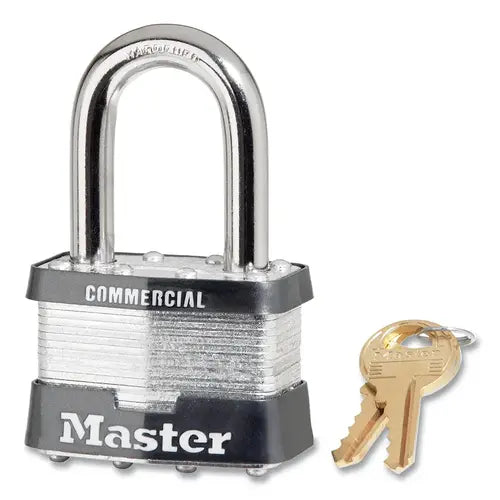

The Master Lock 5KALF-A1223 is a No. 5 laminated steel padlock supplied in a keyed-alike configuration (code A1223). It features a 1-1/2 in (38 mm) shackle height with a 3/8 in (10 mm) hardened boron alloy shackle and a reinforced 2 in (51 mm) laminated steel body. The lock uses a non-rekeyable 4-pin W1 cylinder and dual ball bearing locking for enhanced resistance to cutting and prying.

• Laminated steel body, 2 in (51 mm) wide, with rubber bumpers for impact protection
• Hardened boron alloy shackle: 3/8 in (10 mm) diameter, 15/16 in inner width, 1-1/2 in (38 mm) inner height
• Non-rekeyable 4-pin W1 cylinder with dual ball bearing locking; keyed alike (A1223)

Product Highlights

Commercial-grade laminated steel padlock with hardened boron alloy shackle and dual ball bearing locking; keyed alike configuration (A1223).

Product Information

Standard Information

• Brand: MASTER LOCK
• Manufacturer Part Number: 5KALF-A1223

Technical Specifications

• Brand: MASTER LOCK
• MPN: 5KALF-A1223
• Product Name: No. 5 laminated steel padlock, keyed alike
• Body Material: Laminated steel
• Body Width: 2 in (51 mm)
• Shackle Diameter: 3/8 in (10 mm)
• Shackle Inner Height: 1-1/2 in (38 mm)
• Shackle Inner Width: 15/16 in
• Shackle Material: Hardened boron alloy
• Locking Mechanism: Dual ball bearing locking
• Cylinder Type: Non-rekeyable W1 cylinder
• Pin Count: 4-pin
• Combination/Keying: Keyed Alike (Code A1223)
• Bumper Material: Rubber bumpers
• Pack Quantity: Pack of 6 (appears in some configurations; may vary)
• Body Finish: Laminated (silver/gray listed in some sources)
• Dimensions (Length x Width x Height): 3.70 x 2.28 x 1.41 in
• Weight: 0.85 lb
