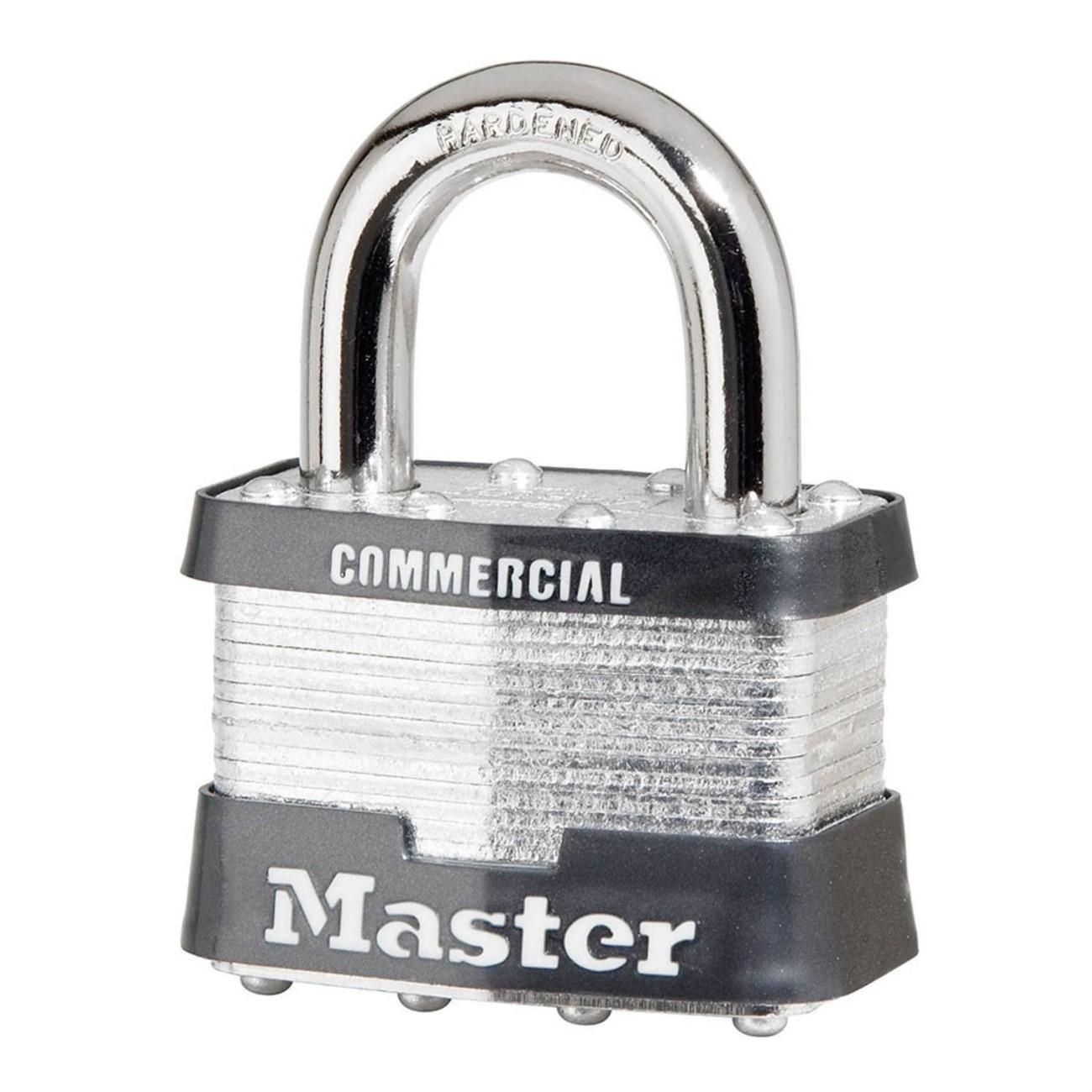

Master Lock 5KA-2996 Laminated Steel Padlock 2 Inch

Product Description

The MASTER LOCK 5KA-2996 is a commercial-grade keyed-alike padlock built for demanding security applications. The body is constructed from reinforced laminated steel measuring 2 inches wide, delivering superior resistance to drilling and prying. The hardened boron alloy shackle stands 1 inch tall with a 3/8-inch diameter, providing strong resistance to cutting and sawing. A 4-pin W1 cylinder with dual ball bearing locking resists picking and prying. This lock comes pre-keyed to key number 2996 and ships with two matching keys, making it well suited for facilities that require multiple locks to operate on a single key.

The 5KA-2996 is intended for commercial and industrial environments where consistent key control across multiple locks is required. Typical applications include securing gates, storage units, equipment rooms, and job site lockboxes. The keyed-alike configuration simplifies access management for facilities managers, contractors, and property maintenance crews who need one key to open several locks across a site.

Key Features

• 2-inch wide reinforced laminated steel body resists drilling and prying
• Hardened boron alloy shackle — 1 inch tall, 3/8-inch diameter — for cut resistance
• Dual ball bearing locking mechanism for maximum pry resistance
• 4-pin W1 cylinder for pick resistance; non-rekeyable
• Keyed alike to key number 2996 with two matching keys included
• Sold individually; suitable for multi-lock keyed-alike installations

Compatibility

Designed as an OEM-style commercial padlock compatible with standard hasp and chain applications requiring a 3/8-inch diameter shackle.

Installation Notes

Installation requires no tools beyond confirming shackle clearance with the hasp or chain link opening. Before installing, verify the hasp or anchor hardware is rated for commercial-grade loads. Snap the shackle fully closed until the locking mechanism engages audibly to confirm proper operation. Keyed-alike orders are factory-configured and non-returnable; confirm the key number before ordering.

Technical Specifications

• Body Width: 2 inches
• Shackle Diameter: 3/8 inches
• Shackle Height (B): 1 inch
• Shackle Clearance (C): 15/16 inches
• Body Material: Reinforced Laminated Steel
• Shackle Material: Hardened Boron Alloy Steel
• Cylinder: 4-pin W1, Non-Rekeyable
• Locking Mechanism: Dual Ball Bearing
• Key Configuration: Keyed Alike — Key 2996
• Keys Included: 2
• Weight: 0.84 pounds
• Sold As: Each

Standard Information

• Brand: MASTER LOCK
• Manufacturer Part Number: 5KA-2996
