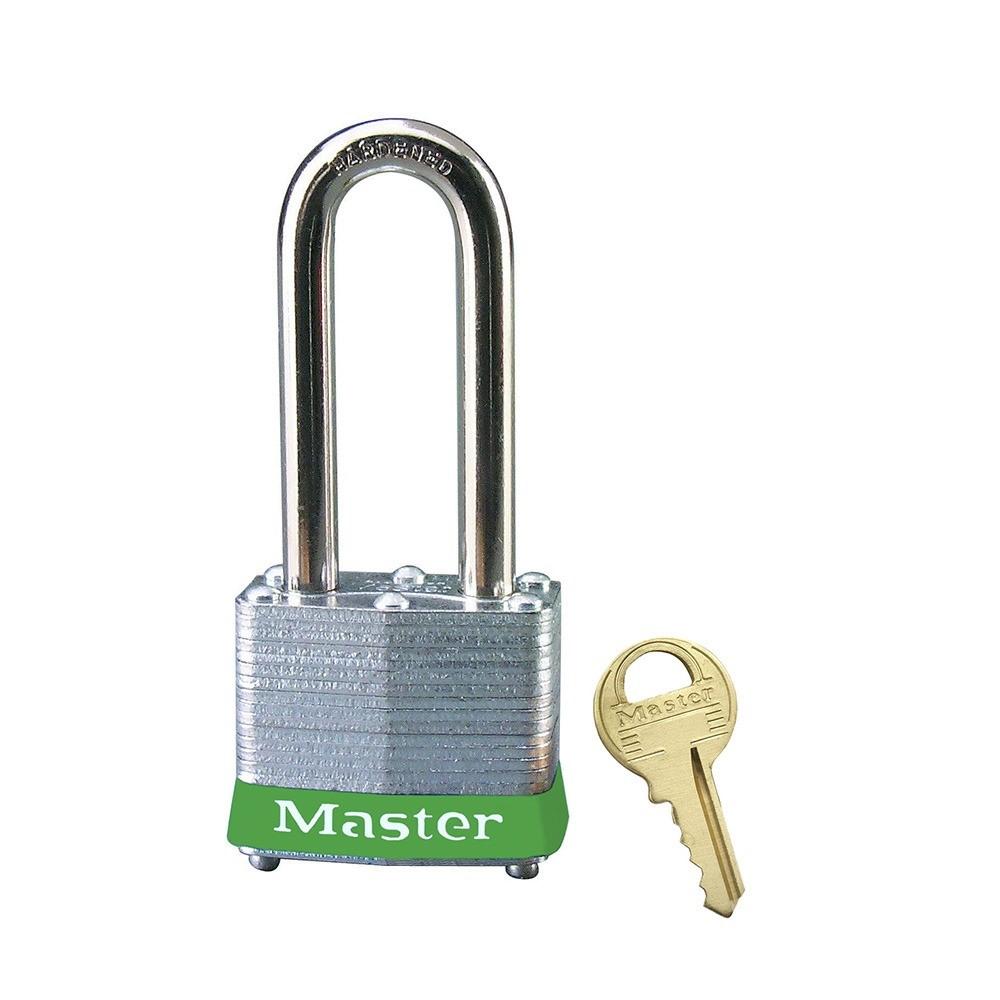

Master Lock 3LHGRN Safety Padlock Laminated Steel Green

Product Description

The MASTER LOCK 3LHGRN is a green laminated steel safety padlock built for environments where locks may face physical abuse, rough handling, or harsh conditions. The lock body measures 1-9/16 inches wide and features a 9/32-inch diameter shackle with 2 inches of clearance. A 4-pin tumbler cylinder provides reliable key control, while dual ball bearing locking delivers strong resistance to prying and forced entry. This padlock is commonly installed as part of lockout/tagout procedures across industrial, commercial, and mechanical service settings. A licensed technician, maintenance professional, or safety-trained technician typically deploys this lock during energy control procedures.

The 3LHGRN is suited for lockout/tagout applications in facilities that require color-coded lock assignments. The green bumper helps identify lock ownership or department at a glance. The keyed-alike configuration allows one key to operate multiple locks of the same series, streamlining access control for technicians managing multiple energy isolation points. The laminated steel construction holds up in environments with exposure to moisture, dust, and mechanical impact, making it appropriate for use in mechanical rooms, electrical panels, valve lockout stations, and similar service locations.

Key Features

• Reinforced laminated steel body with green protective bumper resists physical abuse and corrosion
• 9/32-inch diameter shackle with 2-inch clearance fits standard lockout hasps and valve lockout devices
• Dual ball bearing locking mechanism provides maximum pry resistance
• 4-pin tumbler cylinder for reliable key retention and pick resistance
• Keyed-alike configuration allows one key to operate multiple locks in the same set
• Color-coded green bumper supports visual identification in multi-lock lockout/tagout programs

Compatibility

Designed as an OEM-style replacement or supplemental lock for standard lockout/tagout programs using laminated steel safety padlocks with 1-9/16-inch wide bodies and keyed-alike cylinder configurations.

Installation Notes

This padlock is installed by maintenance technicians, electricians, pipefitters, or any trained personnel following a written lockout/tagout energy control procedure. Always verify that all energy sources are fully isolated and de-energized before applying the lock. Confirm shackle engagement and lock body seating before leaving the equipment unattended. Lockout/tagout programs must comply with OSHA 29 CFR 1910.147 and applicable facility safety policies.

Technical Specifications

• Lock Body Width: 1-9/16 inches (40mm)
• Shackle Diameter: 9/32 inches (7mm)
• Shackle Clearance Height: 2 inches (51mm)
• Cylinder Type: 4-pin tumbler
• Locking Mechanism: Dual ball bearing
• Body Material: Laminated steel with green bumper
• Keying: Keyed alike
• Weight: 0.45 pounds

Standard Information

• Brand: MASTER LOCK
• Manufacturer Part Number: 3LHGRN
