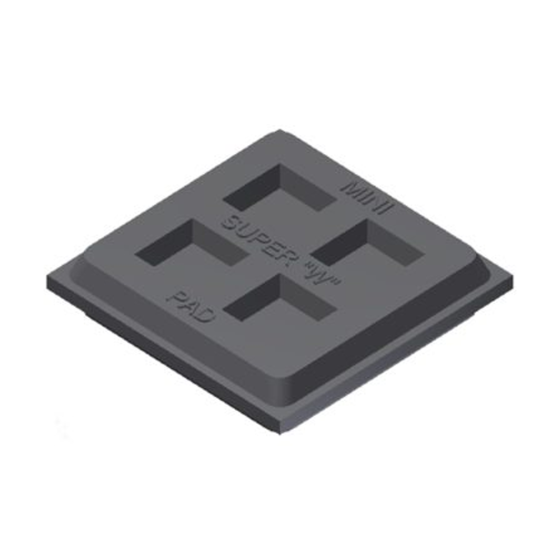

Mason R18X18MSW Mini Super W Waffle Pad 18 inches x 18 inches x 3/8 inches

Product Description

The MASON R18X18MSW Mini Super W Pad sheet is 18" x 18" x 3/8" and consists of 81 – 2" modules. The 2" squares are separated by a thin web that is easily cut to provide evenly dimensioned pads. The Super W pad is versatile and efficient for applications needing isolation or a noise break.

• Consists of 81 – 2" (50mm) modules.
• Squares are separated by a thin web that is easily cut.
• Recommended Load per 3x3 Square: 180 lbs

Product Highlights

The MASON Mini Super W Pad is versatile and efficient for applications needing isolation or a noise break.

Product Information

Standard Information

• Brand: MASON
• Manufacturer Part Number: R18X18MSW

Technical Specifications

• Thickness: 3/8"
• Safety Standards: California Prop 65
• Operating Weight (lbs): 15
• Exterior Dimensions (D) (inches): 18.000000
• Exterior Dimensions (W) (inches): 18.000000
• Exterior Dimensions (H) (inches): 1.000000
• Shipping Weight (lbs): 15.000000
• Duro-meter Standard: 45
• Recommended Maximum Load Deflection (in): 0.113 (15%)
• Recommended Load per 3x3 Square (lbs): 180
• Recommended Load per Area (lbs/in²): 45
• Maximum Load per Area(lbs/in²): 60
