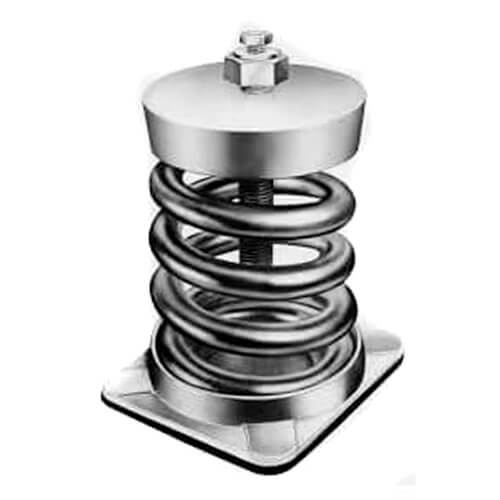

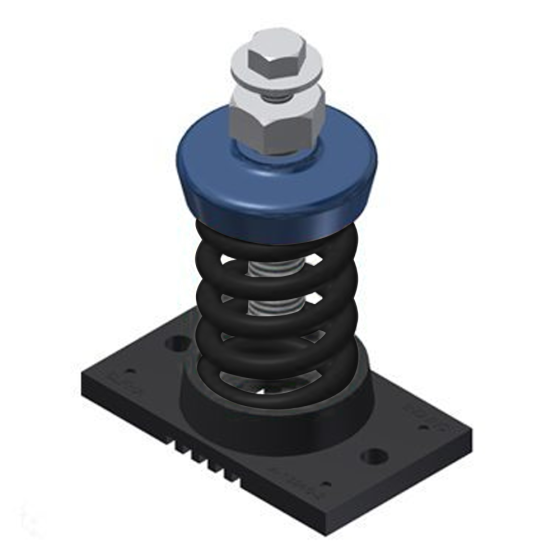

Mason Industries SLFH-A-200 Steel Unhoused Spring Mount Vibration Isolator 200 lbs Capacity

Product Description

The MASON INDUSTRIES SLFH-A-200 steel unhoused spring mount vibration isolator is designed for applications requiring maximum vibration control. This mount has a rated capacity of 200 lbs and a rated deflection of 1.15". It is suitable for indoor use where lateral stability is not affected by wind loads. The mount constant is 174 lbs.

• Rated Capacity: 200 lbs
• Rated Deflection: 1.15"
• Suitable for indoor applications

Product Highlights

Unhoused spring mounts provide the greatest deflection for maximum vibration control in indoor applications.

Product Information

Standard Information

• Brand: MASON INDUSTRIES
• Manufacturer Part Number: SLFH-A-200
• Country of Origin: THAILAND

Technical Specifications

• Rated Capacity (lbs): 200
• Rated Deflection: 1.15"
• Mount Constant (lbs): 174
• Color: Black
• Product Type: Mounting Part
• Capacity: 200 Lbs.
• Max. Static Deflection: 1.15"
• Safety Standards: California Prop 65
• Operating Weight (lbs): 1
• Exterior Dimensions (D) (inches): 5.000000
• Exterior Dimensions (W) (inches): 4.000000
• Exterior Dimensions (H) (inches): 3.000000
