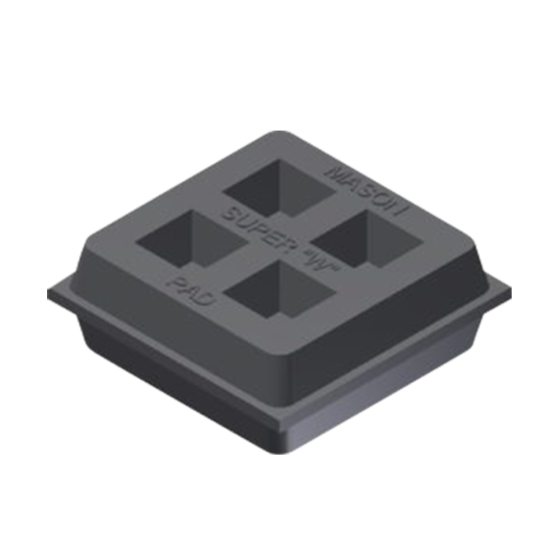

Mason Industries R2X2SW Super W Waffle Pad 2x2

Product Description

The MASON INDUSTRIES R2X2SW Super W Waffle Pad is a resilient friction pad designed for vibration isolation and noise reduction in non-critical areas. It eliminates the need for bolting down machinery, providing a noise break and isolation. This 2x2 inch pad has a 3/4 inch thickness and is made of natural rubber, offering efficient performance with a recommended load of 180 lbs per square.

• Consists of a single 2 inch (50mm) module for versatile application.
• Provides vibration isolation and noise reduction for machinery.
• Eliminates the need for bolting down equipment.

Product Highlights

Efficient natural rubber pad for vibration isolation and noise reduction, supporting up to 180 lbs per 2x2 inch square.

Product Information

Standard Information

• Brand: MASON INDUSTRIES
• Manufacturer Part Number: R2X2SW

Technical Specifications

• Thickness: 0.75 inches
• California Prop 65 Compliant: Yes
• Weight: 0.4 lbs
• Pad Size: 2 x 2 inches
• Durometer: 50
• Recommended Max Load Deflection: 0.113 inches (15%)
• Recommended Load per 2x2 Square: 180 lbs
• Recommended Load per Area: 45 lbs/in²
• Maximum Load per Area: 60 lbs/in²
