Mason Industries IMF-A-125 IMF - 1 inches Deflection Single Mount A-125

Product Description

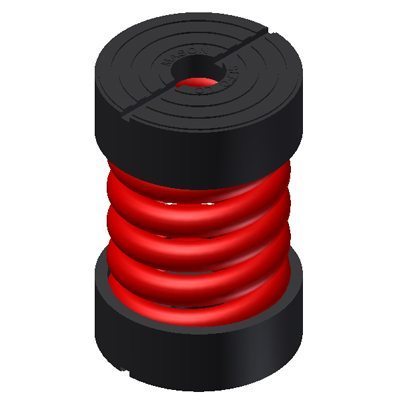

The MASON INDUSTRIES IMF-A-125 is a 1" deflection single mount spring isolator designed to virtually eliminate structurally transmitted noise and vibration. This A-125 model offers a rated capacity of 125 lbs and a rated deflection of 1.33 inches, with a mount constant of 94 lbs/in. It is ideal for equipment located on upper building levels or near inhabited areas with rotational speeds below 1200 RPM, ensuring maximum vibration and noise control.

• Virtually eliminates structurally transmitted noise and vibration
• Offers greatest assurance that destructive vibration and noise will be eliminated or greatly reduced
• Designed for maximum vibration and noise control

Product Highlights

Single mount spring isolator for effective noise and vibration reduction in sensitive environments.

Product Information

Standard Information

• Brand: MASON INDUSTRIES
• Manufacturer Part Number: IMF-A-125

Technical Specifications

• Size: A-125
• Rated Capacity: 125 lbs
• Rated Deflection: 1.33 in
• Mount Constant: 94 lbs/in
