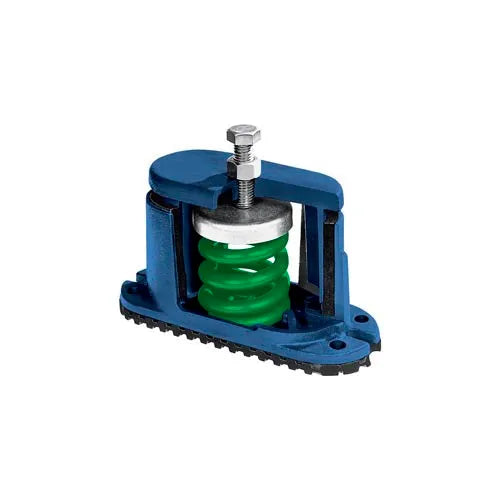

Mason Industries C-A-310 Housed Spring Floor Mount Vibration Isolator 310 lbs 5-3/4 inchesL x 2-1/8 inchesW

Product Description

The MASON INDUSTRIES C-A-310 Housed Spring Floor Mount Vibration Isolator is designed to efficiently reduce vibration transmission. This single spring floor mount features steel springs that offer greater deflection compared to rubber products, improving performance with heavier loadings. It is suitable for indoor applications with lightweight equipment, providing lateral stability and maximum vibration control. The isolator has a maximum load capacity of 310 lbs and overall dimensions of 5-3/4"L x 2-1/8"W x 4-1/2"H.

• Steel springs efficiently reduce vibration transmission.
• Offers 2-6 times higher spring deflections than rubber products.
• Suitable for indoor applications on lightweight equipment, with a max load of 310 lbs.

Product Highlights

Housed spring mount for maximum vibration control and lateral stability.

Product Information

Standard Information

• Brand: MASON INDUSTRIES
• Manufacturer Part Number: C-A-310
• Country of Origin: Import

Technical Specifications

• Type: Single Spring Floor Mount
• Brand: Mason Industries
• Material: Neoprene/Spring
• Width: 2.13 in
• Height: 4.50 in
• Length: 5.75 in
• Package Quantity: 1
• Max Deflection: 1.00"
• Weight Capacity: 310 lbs
• Load Capacity Range: 100 - 500 lbs
• Mount Hole Diameter: 0.38 in
• Manufacturers Part Number: C-A-310
• Spring Constant: 310 lbs/in
• Product Type: Mounting Part
• Minimum Deflection: 0.75"
• Series/Model: C
• Item: Spring Mount
• Spring Size: 1-3/4 Inch Diameter x 3 Inch Free Height
• Housing Material: Cast Iron
• Application: Light Concrete or Wooden Floor
