Mason Industries 30N-X-76 30° Swing Spring and LDS Hanger 76 lbs Capacity

Product Description

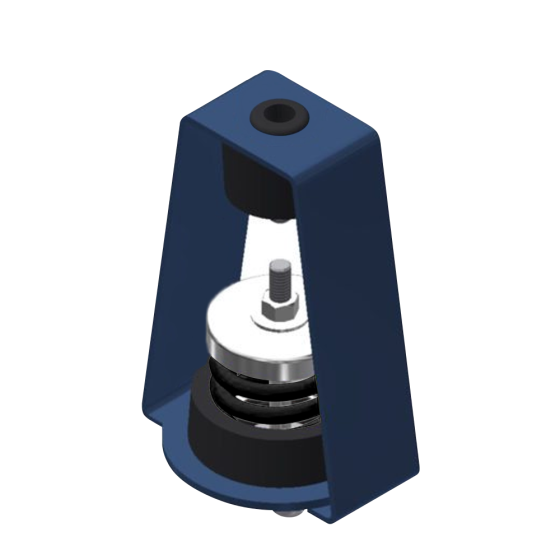

The MASON INDUSTRIES 30N-X-76 30° Swing Spring and LDS Hanger features a rigid steel frame with a 1-1/4" (32mm) thick LDS rubber element at the top and a steel spring in a steel washer reinforced LDS rubber cup on the bottom. It has a rated capacity of 76 lbs and a rated deflection of 1.22". The spring constant is 73 lbs.

• Rated Capacity: 76 lbs
• Rated Deflection: 1.22"
• Spring Constant: 73 lbs

Product Highlights

This spring and LDS hanger provides vibration isolation with a 30° swing capability, ideal for suspending equipment while minimizing noise and vibration transfer.

Product Information

Standard Information

• Brand: MASON INDUSTRIES
• Manufacturer Part Number: 30N-X-76

Technical Specifications

• Rated Capacity (lbs): 76
• Rated Deflection: 1.22"
• Spring Constant (lbs): 73
• Average LDS Deflection (in): 0.20
• Product Type: Hangers
• Capacity (lbs): 76 lbs
• Size: X-76
• Rated Deflection (in): 1.22
• Maximum Rod Diameter (in): 3/8”
• Spring Color: Black
• Safety Standards California Prop 65: Yes
• Exterior Dimensions (D) (inches): 2.500000
• Exterior Dimensions (W) (inches): 2.880000
• Exterior Dimensions (H) (inches): 4.250000
• Material: Steel
