Mason Industries 30N-X-54 30° Swing Spring and LDS Hanger 54 lbs

Product Description

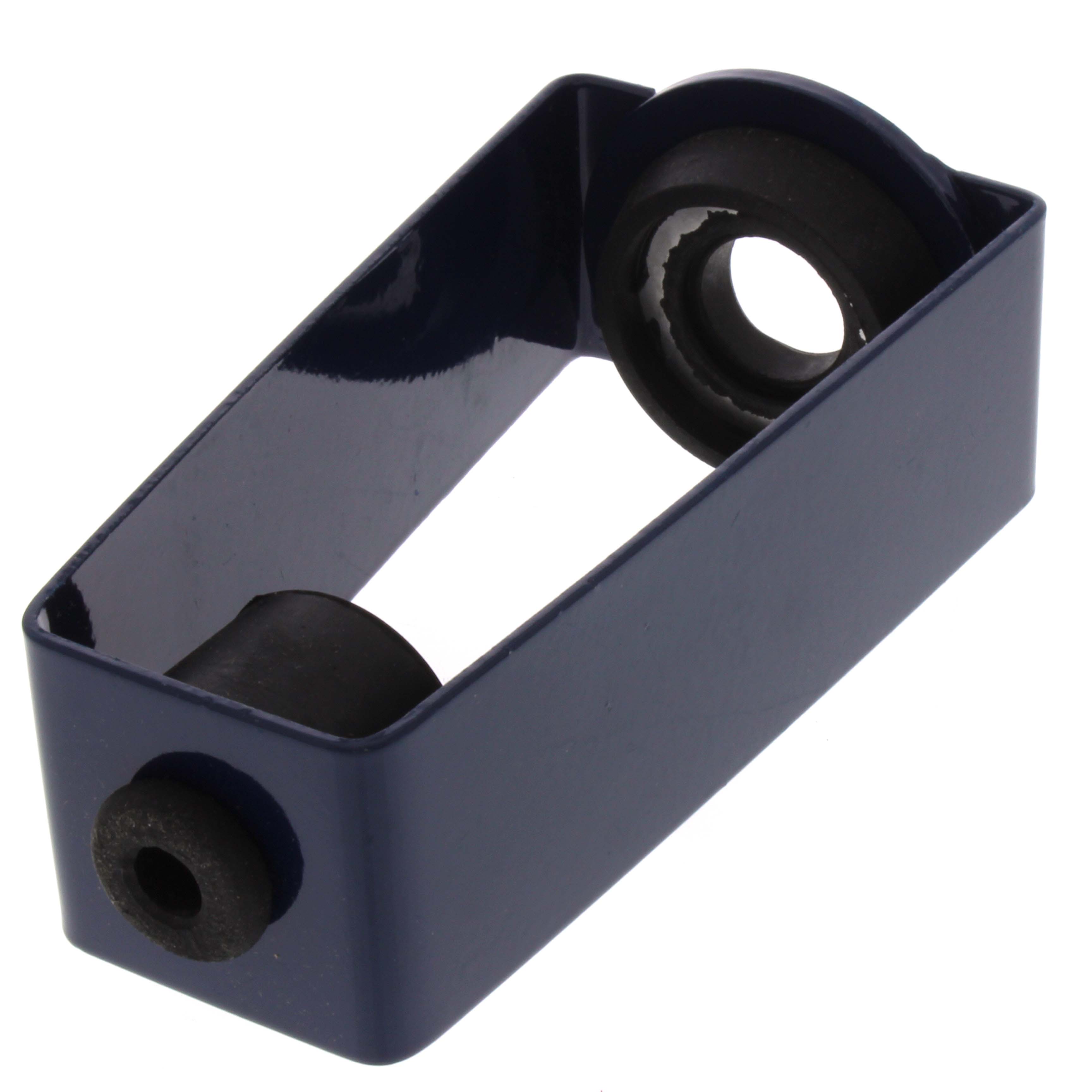

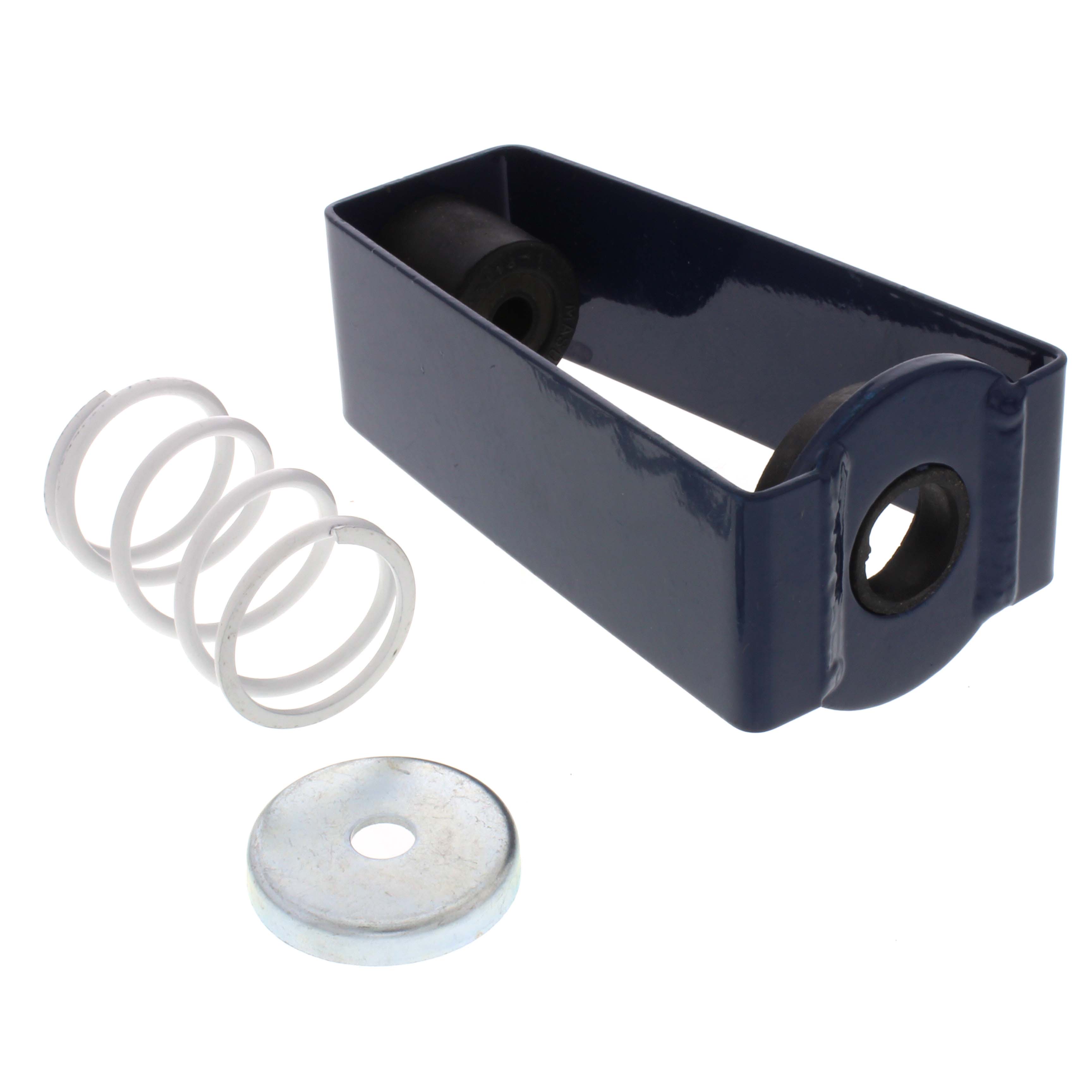

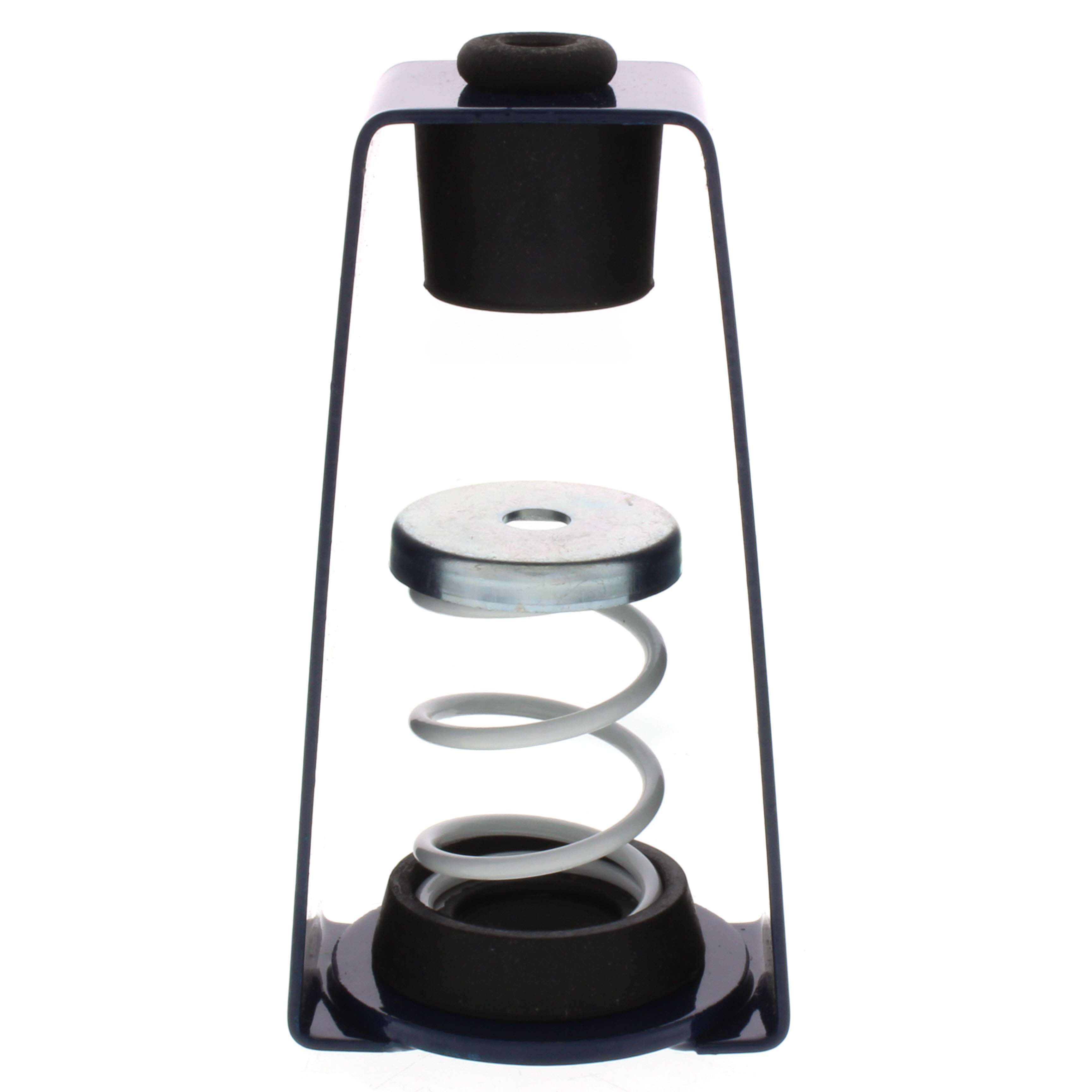

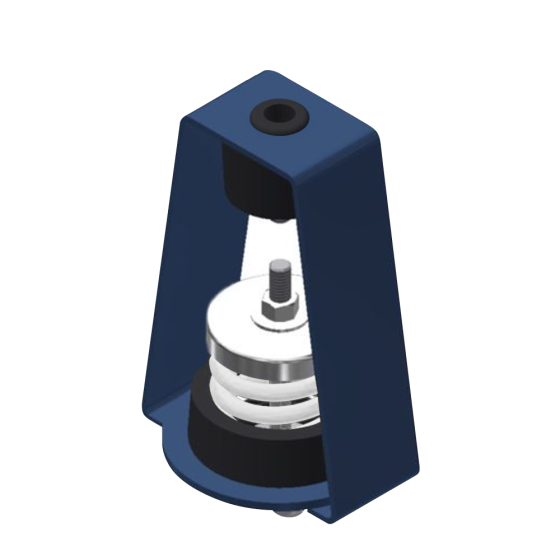

The MASON INDUSTRIES 30N-X-54 30° Swing Spring and LDS Hanger has a rated capacity of 54 lbs. It features a rigid steel frame containing a minimum 1-1/4" (32mm) thick LDS rubber element at the top and a steel spring in a steel washer reinforced LDS rubber cup on the bottom. Spring and hanger lower hole diameters permit the hanger rod to swing through a 30° arc.

• Rated Capacity: 54 lbs
• Rated Deflection: 1.40"
• Spring Constant: 45 lbs

Product Highlights

The 30N-X-54 hanger provides effective vibration isolation with its spring and LDS rubber construction, ideal for suspending equipment.

Product Information

Standard Information

• Brand: MASON INDUSTRIES
• Manufacturer Part Number: 30N-X-54

Technical Specifications

• Rated Capacity (lbs): 54
• Rated Deflection: 1.40"
• Spring Constant (lbs): 45
• Average LDS Deflection (in): 0.20
• Product Type: Hangers
• Capacity (lbs): 54 lbs
• Maximum Rod Diameter (in): 3/8”
