Mason Industries 30N-X-113 30° Swing Spring and LDS Hanger 113 lbs Capacity

Product Description

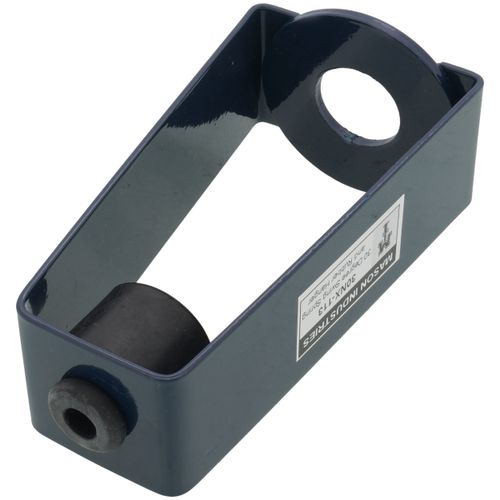

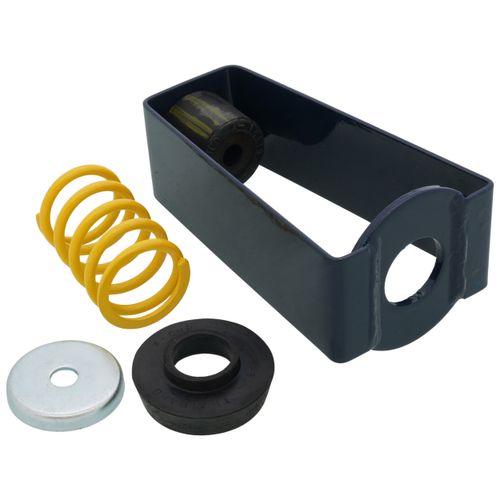

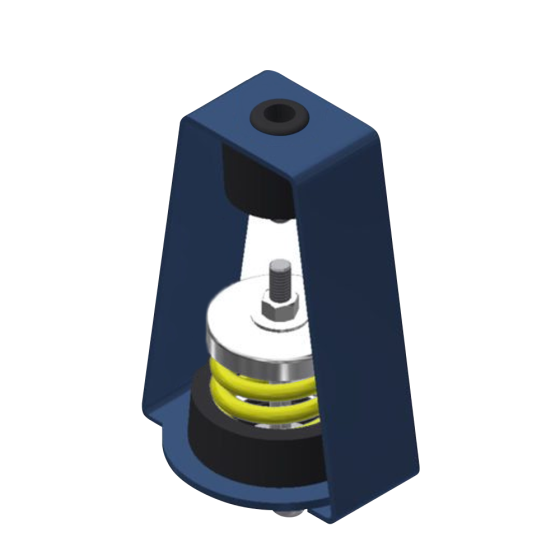

The MASON INDUSTRIES 30N-X-113 30° Swing Spring and LDS Hanger consists of a rigid steel frame containing a minimum 1 1/4" (32mm) thick LDS rubber element at the top and a steel spring in a steel washer reinforced LDS rubber cup on the bottom. Designed to permit the hanger rod to swing through a 30° arc.

• Rigid steel frame
• Minimum 1 1/4"(32mm) thick LDS rubber element
• 113 lbs Capacity

Product Highlights

The 30N-X-113 spring hanger provides vibration isolation with a 30° swing capability. It features a steel spring and LDS rubber components for effective noise reduction.

Product Information

Standard Information

• Brand: MASON INDUSTRIES
• Manufacturer Part Number: 30N-X-113
• Country of Origin: United States

Technical Specifications

• Rated Capacity (lbs): 113
• Rated Deflection: 1.20"
• Spring Constant (lbs): 113
• Average LDS Deflection (in): 0.20
• Color: Yellow
• Product Type: Hangers
• Size: X-113
• Rated Defl (in): 1.2
• Spring Constant (Ibs/in): 113
• Maximum Rod Diameter (in): 3/8”
• Spring Color: Yellow
• Safety Standards California Prop 65: Yes
• Exterior Dimensions (D) (inches): 2.500000
• Exterior Dimensions (W) (inches): 2.875000
• Exterior Dimensions (H) (inches): 4.250000
• Brand: Mason
• MPN: 30N-X-113
• Country of Origin: United States
