Mason Industries 30N-54 30° Swing Single Spring & Double Deflection LDS Hanger 54lbs

Product Description

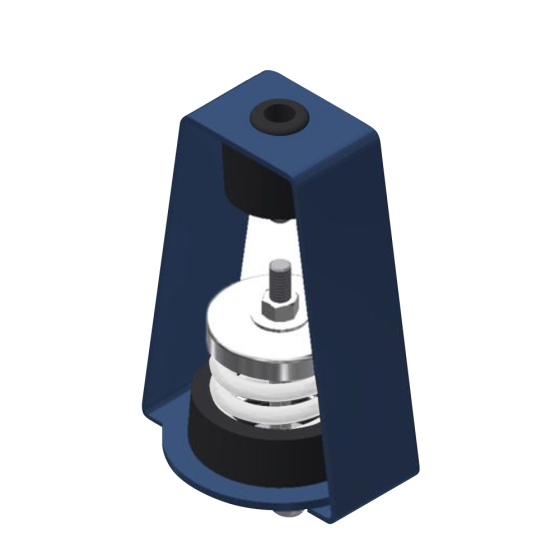

The Mason Industries 30N-54 30° Swing Spring & Double Deflection LDS Hanger features a rigid steel frame with a 1-1/4" thick LDS rubber element at the top and a steel spring in a steel washer reinforced LDS rubber cup on the bottom. Designed to maintain stability, the hanger allows a 30° arc swing. The spring and hanger lower hole diameters accommodate hanger rod movement.

• Rated Capacity: 54 lbs
• Rated Deflection: 1.4 in
• Maximum Rod Diameter: 3/8”

Product Highlights

The 30N-54 hanger provides spring and double deflection for effective vibration isolation in various mechanical and electrical applications.

Product Information

Standard Information

• Brand: MASON INDUSTRIES
• Manufacturer Part Number: 30N-54

Technical Specifications

• Safety Standards: California Prop 65
• California Prop 65: Yes
• Exterior Dimensions (D) (inches): 1.750000
• Exterior Dimensions (W) (inches): 1.880000
• Exterior Dimensions (H) (inches): 2.250000
• Rated Capacity (Ibs): 54
• Rated Deflection (in): 1.4
• Maximum Rod Diameter (in): 0.375
