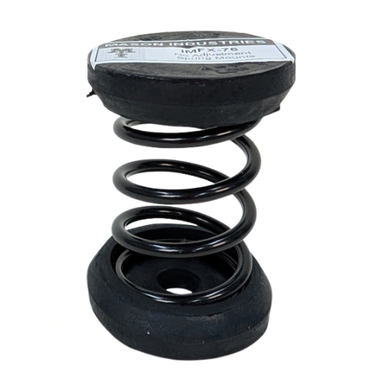

Mason IMFX-76 Simple spring mount isolator (2 in x 2-3/4 in)

Product Description

The Mason IMFX-76 is a simple spring mount isolator designed to isolate vibration for HVAC and lightweight floor-mounted equipment. Each unhoused, non-adjustable mount has a nominal diameter of 2 inches and a height of 2.75 inches, with a rated capacity of 76 lb and a maximum static deflection of 1.02 inches. Construction uses rubber and a coil spring and is intended for indoor vibration control applications.

• Rated load capacity: 76 lb; load range 0–100 lb
• Nominal size: 2 in diameter x 2.75 in height; maximum static deflection 1.02 in
• Unhoused, non-adjustable rubber and spring construction; single mount design

Product Highlights

Unhoused spring isolator for indoor HVAC and light equipment vibration isolation; 76 lb capacity and 1.02 in deflection.

Product Information

Standard Information

• Brand: MASON
• Manufacturer Part Number: IMFX-76
• Country of Origin: Thailand

Technical Specifications

• Brand: MASON
• MPN: IMFX-76
• Model / SKU: IMF-X-76
• Type: Unhoused simple spring mount isolator; non-adjustable; single mount
• Construction: Rubber and coil spring
• Diameter: 2.00 in
• Height: 2.75 in
• Hole Diameter: 7/16 in
• Load Capacity: 76 lb
• Load Capacity Range: 0 - 100 lb
• Maximum Static Deflection: 1.02 in
• Deflection Rating: 1 in (rated deflection with additional travel to solid equal to 50% of rated deflection)
• Adjustable: No (non-adjustable)
• Country of Origin: Thailand
• Application: Vibration isolation for HVAC and lightweight floor-mounted equipment
• Rotational Speed Limit: Suitable for equipment with rotational speeds below 1200 RPM
