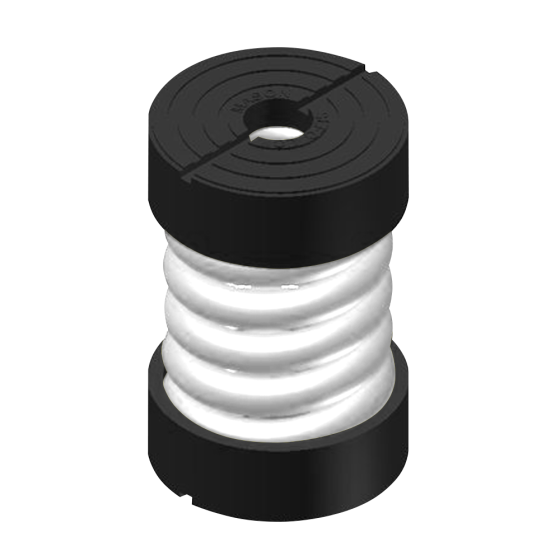

Mason IMF-X-54 Simple Spring Mount Isolator (54 lb Capacity) 31546

Product Description

Mason IMF-X-54 is a simple spring mount isolator designed to provide vibration isolation for HVAC and floor-mounted equipment. The single spring, unhoused design supports a 54 lb rated capacity with 1.20 in deflection and a spring constant of 45 lbs/in, reducing transmission of equipment vibration to building structure in indoor applications and for lightweight machinery operating below 1200 RPM.

• Rated capacity 54 lbs with 1.20 in rated deflection and spring constant 45 lbs/in
• Maximum rod diameter 7/16 in; exterior dimensions approx. 2.00 x 2.00 x 3.00 in
• Intended for indoor, floor-mounted equipment and HVAC applications; unhoused single spring design

Product Highlights

Single-spring vibration isolator, 54 lb capacity, 1.20 in deflection, for indoor floor-mounted equipment

Product Information

Standard Information

• Brand: MASON
• Manufacturer Part Number: IMF-X-54
• Country of Origin: Thailand

Technical Specifications

• Brand: MASON
• MPN: IMF-X-54
• Model/Reference: 31546
• Type: Simple spring mount isolator
• Capacity (lbs): 54
• Rated Deflection (in): 1.20
• Spring Constant (lbs/in): 45
• Maximum Rod Diameter (in): 7/16"
• Exterior Dimensions (D x W x H in): 2.00 x 2.00 x 3.00
• Recommended application: Floor-mounted lightweight equipment, HVAC vibration isolation
• Recommended maximum equipment speed (RPM): Below 1200
• Country of Origin: Thailand
• Harmonize Code: 7326.90.8695
• Safety - California Prop 65: Yes
• Spring Color: White
• Unhoused: Yes
