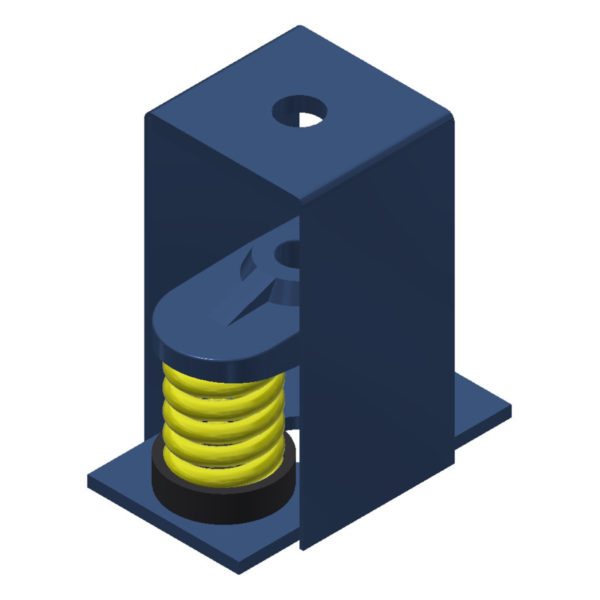

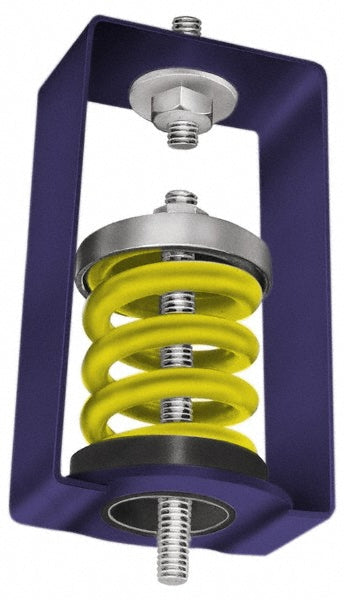

Mason HS-X-175 Ind. Vibration Control Hanger 130 to 175 Lb

Product Description

The MASON HS-X-175 Ind. Vibration Control Hanger is designed to manage vibration. It supports a load capacity from 130 to 175 lbs and features a maximum deflection of 1 inch. This steel hanger measures 2-7/8" wide x 4-1/4" high x 2-1/2" deep, with a 3/8" maximum rod diameter and 3-1/2" lower rod penetration.

• Load Capacity: 130 to 175 lbs
• Maximum Deflection: 1.0 in
• Maximum Rod Diameter: 3/8"

Product Highlights

Effectively manages vibration with a durable steel construction and precise deflection control.

Product Information

Standard Information

• Brand: MASON
• Manufacturer Part Number: HS-X-175
• Country of Origin: Thailand

Technical Specifications

• Isolator Type: HSX
• Material: Steel
• Maximum Deflection: 1.0 in
• Minimum Deflection: 0.75
• Maximum Load Capacity: 175.0 lb
• Minimum Load Capacity: 130.0
• Maximum Rod Diameter: 3/8
• Lower Rod Penetration: 3-1/2
• Length (Inch): 2.5 in
• UNSPSC Code: 23153100
• Country of Origin: Thailand
• SIZE: X-175
• Rated Capacity (Ibs): 175
• Rated Defl (in): 1.00
• Spring Constant (Ibs/in): 175
• Brand: Mason
• Model: ISOLATION KIT
• MPN: HSX-175
