Mason HS-A-125 HS Spring Hanger 125 lbs Capacity

Product Description

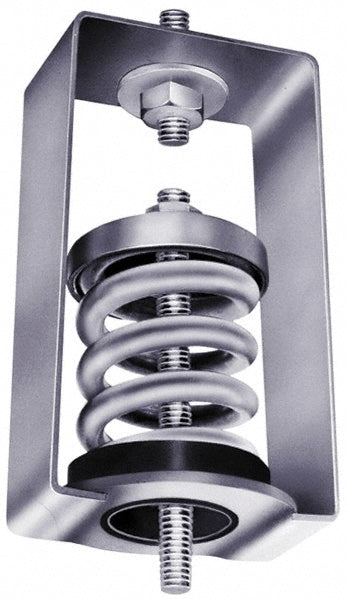

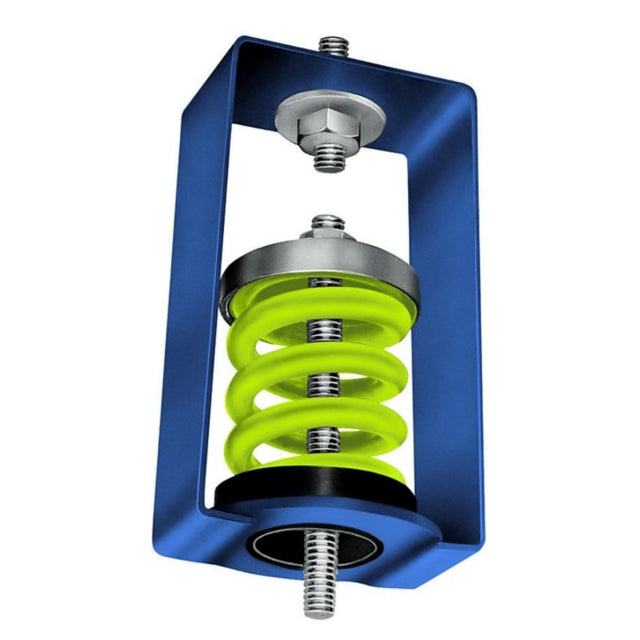

The Mason HS-A-125 HS Spring Hanger with 125 lbs capacity provides superior vibration control compared to lower deflection rubber hangers. Each powder-coated steel spring is in series with a rubber cup, offering excellent isolation efficiency. It's designed for optimal performance and durability in various applications.

• Provides far greater vibration control than the lower deflection rubber hangers.
• Each Powder coated steel spring is in series with a rubber cup, providing excellent isolation efficiency.
• Spring Constant 94 Inch-Pound

Product Highlights

The HS Spring Hanger uses standard A, B, and C Springs seated in LDS Cups with projecting bushings to line the hole in the lower end of the box.

Product Information

Standard Information

• Brand: MASON
• Manufacturer Part Number: HS-A-125
• Country of Origin: Thailand

Technical Specifications

• Item: Spring Hanger
• UOM: ea
• Isolator Type: HSA
• Material: Steel
• Maximum Deflection: 1.0 in
• Minimum Deflection: 1.33
• Maximum Load Capacity: 125.0 lb
• Maximum Rod Diameter: 5/8
• Lower Rod Penetration: 4
• Color: Brown
• UNSPSC Code: 23153100
• Country of Origin: Thailand
• Brand: Mason
• Hangers Type: Spring Hangers
• Applicable Standard: EPA
• Vendor Name: Mason
• URI Part Number: HSA125
• Vendor Part Number: HS-A-125
• Deflection Rating: 1.33 Inch
• Capacity Rating: 125 Pound
• Spring Constant: 94 Inch-Pound
