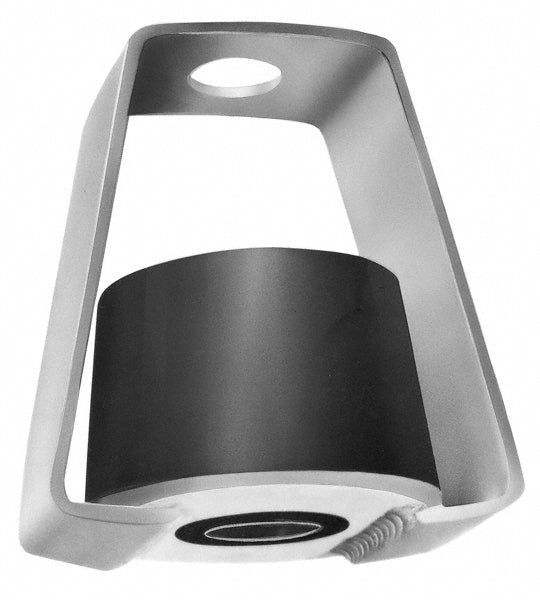

Mason HD-A-RED Double Deflection LDS Hanger 60 to 125 lb

Product Description

The Mason HD-A-RED double deflection LDS hanger supports loads from 60 to 125 lbs. It offers increased static deflection and vibration control like ND mounts, but in a sturdy steel hanger box. LDS (Low Dynamic Stiffness) Rubber is a special Natural Rubber compound known for its excellent aging characteristics.

• Offers increased static deflection and vibration control
• Features a sturdy steel hanger box
• Made with LDS (Low Dynamic Stiffness) Rubber

Product Highlights

The Mason HD-A-RED hanger provides vibration control with a durable design, suitable for various industrial applications.

Product Information

Standard Information

• Brand: MASON
• Manufacturer Part Number: HD-A-RED
• Country of Origin: Thailand

Technical Specifications

• Isolator Type: HDA
• Maximum Deflection: 0.35 in
• Minimum Deflection: 0.18 in
• Maximum Load Capacity: 125.0 lb
• Minimum Load Capacity: 60.0 lb
• Maximum Rod Diameter: 0.5 in
• Lower Rod Penetration: 2.25 in
• Brand: Mason Industries
• Model: HD-A-RED
• MPN: HD-A-RED
• Country of Origin: United States
• Item: Deflection Hanger
• Durometer: 50
• Rated Capacity Range (lbs.): 60-125
• Max Rater Defl. (in.): 0.35
