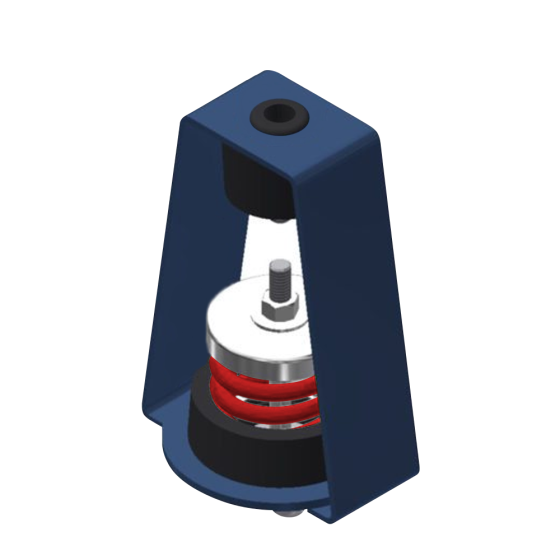

Mason 30N-X-33 30° Swing Red Spring and LDS Hanger 33 lbs

Product Description

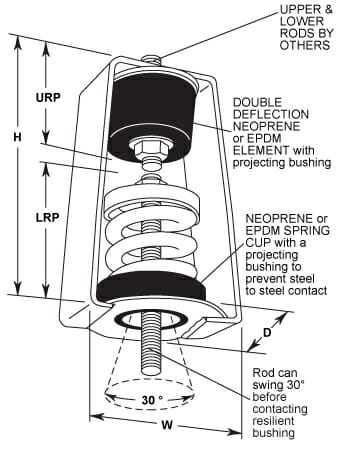

The MASON 30N-X-33 30° Swing Spring & Double Deflection LDS Hanger features a rigid steel frame containing a minimum 1-1/4"(32mm) thick LDS rubber element at the top and a steel spring in a steel washer reinforced LDS rubber cup on the bottom. The lower rod can swing up to 30° for ease in installation to compensate for misalignment.

• Rated Capacity (lbs): 33
• Rated Deflection: 1.30"
• Spring and neoprene element in conjunction remove high and low frequency noise

Product Highlights

The 30N-X-33 hanger isolates a broad range of disturbing vibration frequencies. It is available pre compressed from the factory with a scale for adjusting spring tension.

Product Information

Standard Information

• Brand: MASON
• Manufacturer Part Number: 30N-X-33

Technical Specifications

• Color: Red
• Product Type: Hangers
• Capacity (lbs): 33 lbs
• Safety Standards: California Prop 65 Yes
• Operating Weight (lbs): 3
• Type & Size: 30N-X-33
• Rated Deflection: 1.30"
• Mount Constant: 30 lbs/in
• Spring Color/Stripe: Red
• Spring Constant (lbs): 30
