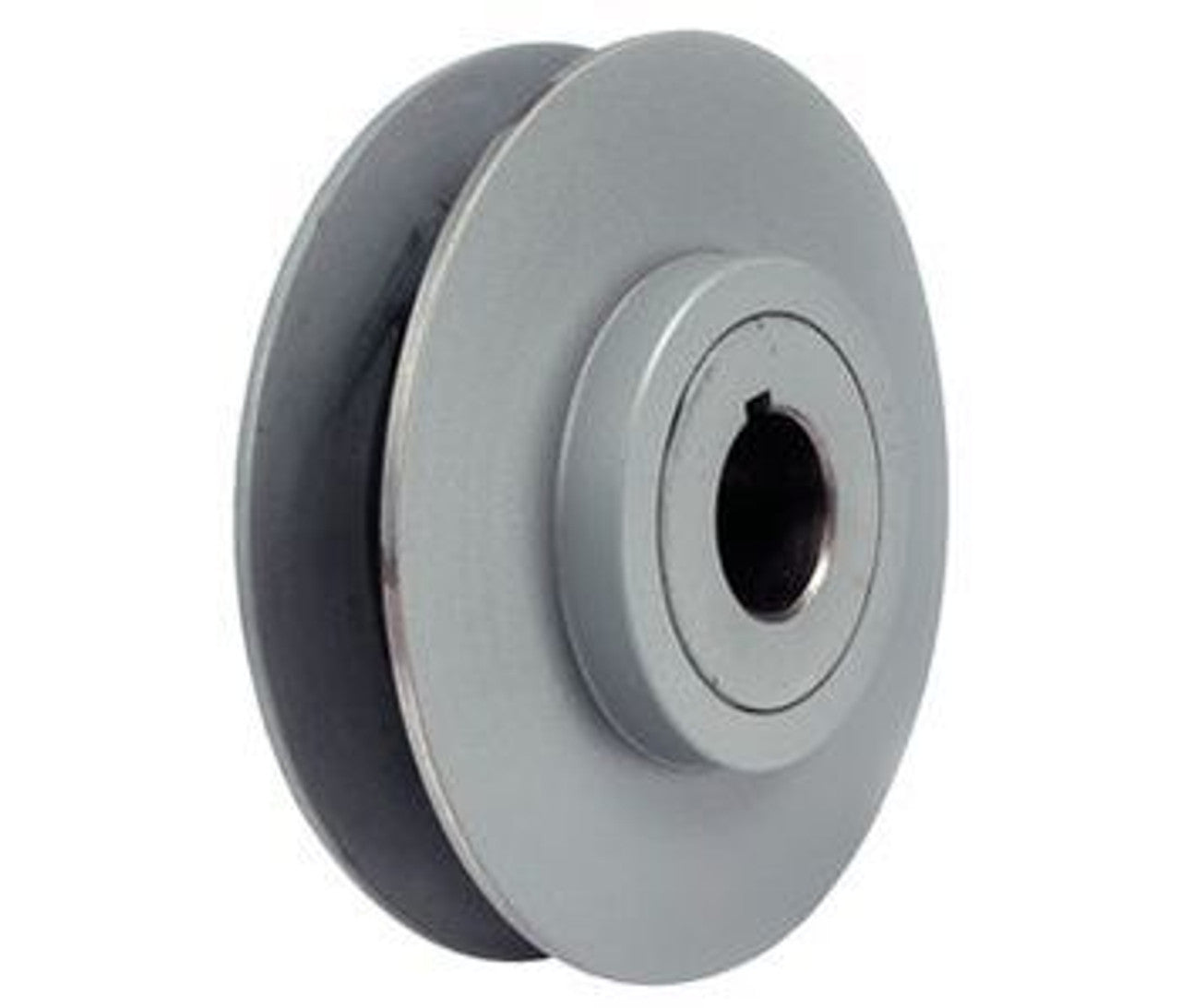

MASKA MVL30-1/2 Variable Pitch Sheave

Product Description

The MASKA MVL30-1/2 is a variable pitch sheave that permits pitch diameter adjustments. This sheave allows control over speed and torque for various applications. It has a VL-type design with one side that is moveable. The sheave features a finished bore of one half inch and is constructed without a keyway.

• Allows adjustment of the pitch diameter.
• Enables control over speed and torque.
• Accommodates a 3L belt size.

Product Highlights

This product is ideal for users looking for flexibility in adjusting pitch diameters while maintaining control over performance.

Product Information

Standard Information

• Brand: MASKA
• MPN: MVL30-1/2

Technical Specifications

• Type: Variable Pitch Sheave
• Model: MVL30X1/2
• Adjustable Pitch Diameter: Yes
• Face Width [Max]: 25/32 inches
• Side Moveable: One
• Face Width [Min]: 17/32 inches
• Overall Length: 1.5 inches
• 3L Pitch [Min]: 2.1 inches
• Belt Match: 1
• K (In): 0.578 inches
• Keyway Size: No Keyway
• Series: 1VL30
• G [Max]: 5/8 inches
• G [Min]: 3/8 inches
• Bushing Type: None
• No. of Grooves: 1
• Pitch Diameter [Min]: 1.6 inches
• 3L Pitch [Max]: 2.4 inches
• Finished Bore: 1/2 inches
• Pitch Diameter [Max]: 2.4 inches
• Belt Size: 3L
• Outside Dia.: 2.5 inches
• Weight: 0.9 lbs
• Package Quantity: 1.0 Piece
