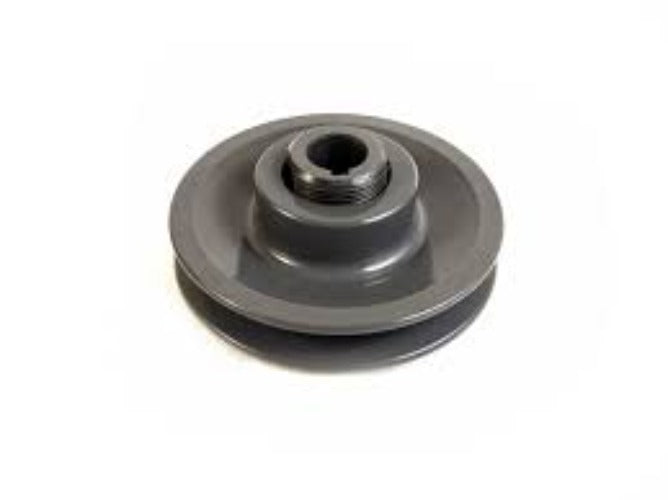

MASKA MVL25-5/8 Adjustable Pulley

Product Description

The MASKA MVL25-5/8 Adjustable Pulley is suitable for variable pitch applications. It features a single groove that accommodates various belt sizes, including 3L, 4L, 5L, A, and B. This pulley allows for precise pitch adjustments to enhance system performance. The outside diameter measures two and a half inches.

• Accommodates belt sizes: 3L, 4L, 5L, A, B
• Single groove design
• Adjustable pitch for system tuning

Product Highlights

The MASKA MVL25-5/8 is designed for flexibility, allowing users to adjust the pitch according to the requirements of their systems.

Product Information

Standard Information

• Brand: MASKA
• MPN: MVL25-5/8

Technical Specifications

• Type: Variable Pitch Sheave
• Series: 1VL25
• Grooves: 1
• Belt Size: 3L, 4L, 5L, A, B
• Outside Diameter: 2.5 inches
• Pitch Diameter (Min): 1.6 inches
• Pitch Diameter (Max): 2.4 inches
• Bore Size: 5/8 inches
• Finished Bore: 1/2 inches
• Face Width (Max): 25/32 inches
• Face Width (Min): 17/32 inches
• Overall Length: 1.5 inches
• Side Moveable: One
• Weight: 0.9 LB
• Package Quantity: 1
