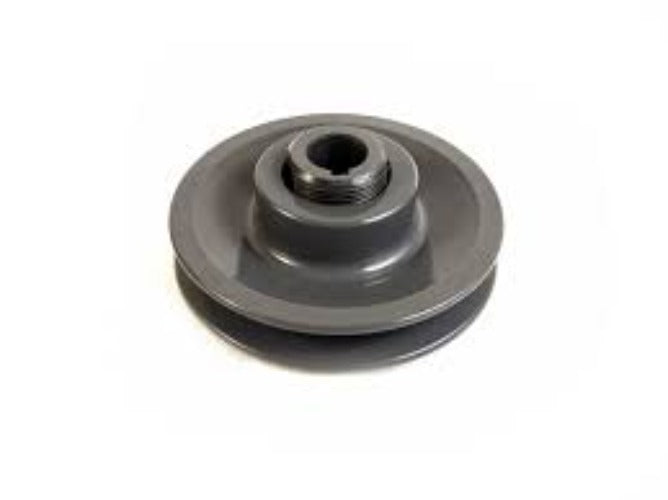

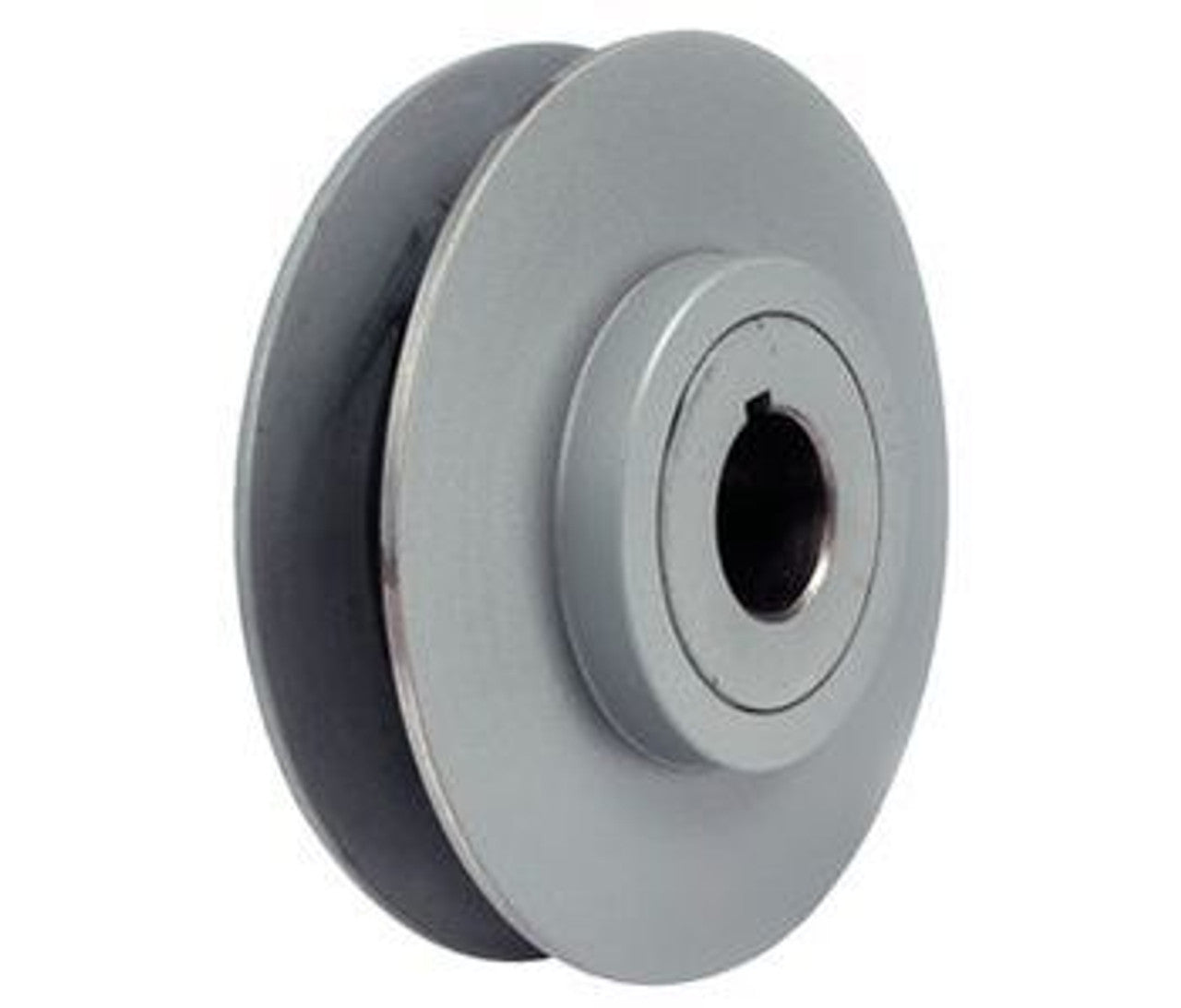

MASKA MVL25-1/2 Adjustable Variable Pitch Sheave

Product Description

The MASKA MVL25-1/2 is an adjustable variable pitch sheave. It is designed to fit 3L belt sizes, making it versatile for different applications. The adjustable pitch diameter enables users to control speed and torque effectively. The sheave has a finished bore of one half inch and an outside diameter of two and a half inches.

• Accommodates 3L belt sizes.
• Features an adjustable pitch diameter.
• Finished bore measures one half inch.

Product Highlights

This adjustable sheave is ideal for applications requiring varied speed and torque adjustments.

Product Information

Standard Information

• Manufacturer Part Number: MVL25-1/2
• Type: VL

Technical Specifications

• Side Moveable: One
• Overall Length: One and one half inches
• 3L Pitch [MIN]: One point six inches
• 3L Pitch [MAX]: Two point four inches
• Belt Match: One
• K (IN): Zero point five seven eight inches
• Keyway Size: No Keyway
• Series: 1VL25
• G [MAX]: Five eighths inches
• G [MIN]: Three eighths inches
• Bushing Type: None
• Number of Grooves: One
• Pitch Diameter [MIN]: One point six inches
• Pitch Diameter [MAX]: Two point four inches
• Finished Bore: One half inches
• Belt Size: 3L, 4L, 5L, A, B
• Bushing Series: N/A
• Outside Diameter: Two and a half inches
• Weight: Zero point nine pounds
• Package Quantity: One piece
• Face Width [MAX]: Twenty five thirty-seconds inches
• Face Width [MIN]: Seventeen thirty-seconds inches
