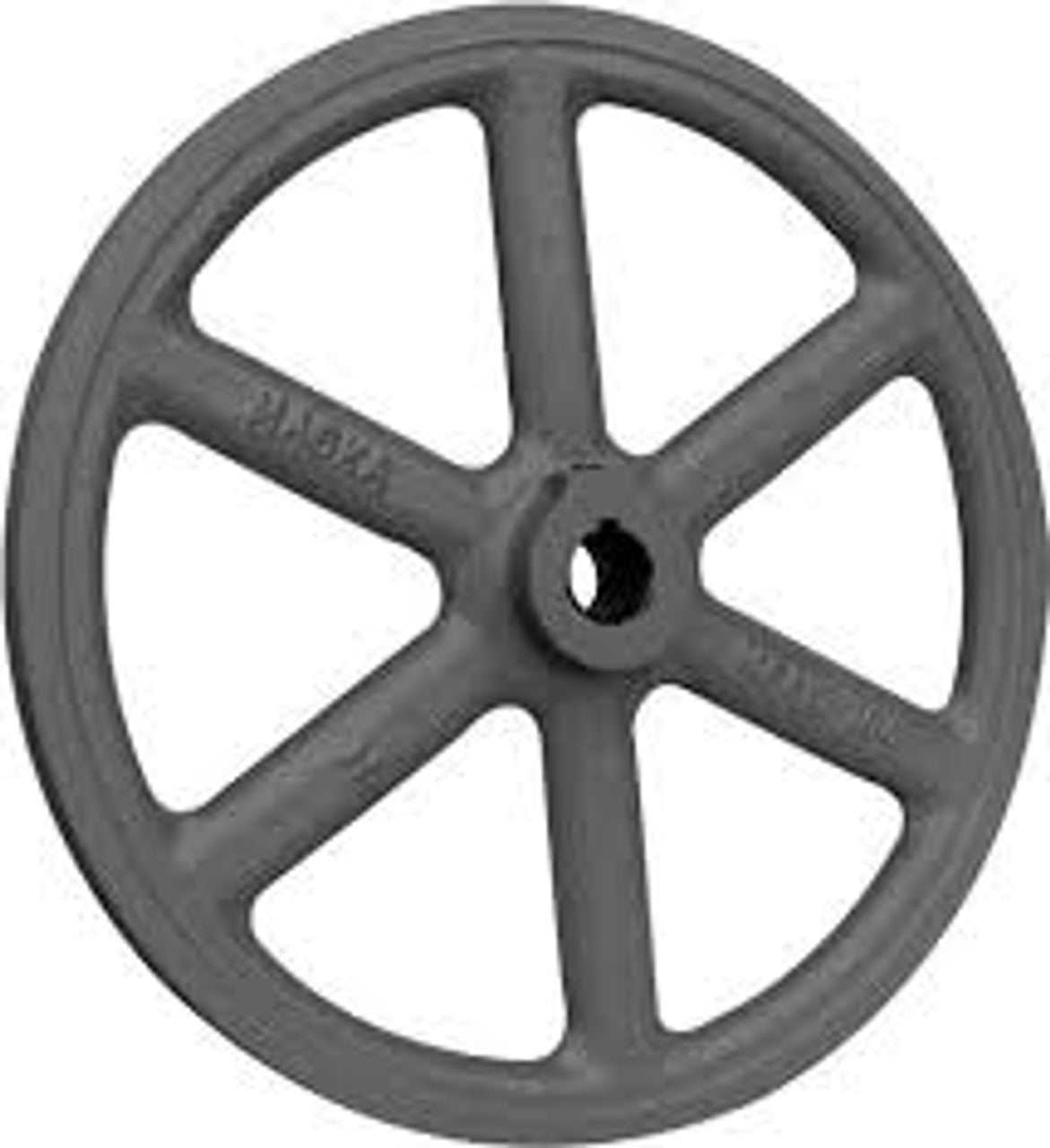

MASKA MBL77 Fixed Bush Sheave

Product Description

The MASKA MBL77 is a fixed bush sheave ideal for power transmission tasks. This sheave works well with A-B, 4L, and 5L cross-section V-belts.

• Accommodates A-B, 4L, and 5L cross-section V-belts.
• Features a single groove and MBL bushing.
• Constructed from durable cast iron.

Product Highlights

This sheave is designed for light-duty applications and has a robust construction suitable for various power transmission needs.

Product Information

Standard Information

• Brand: MASKA
• Type: Fixed Pitch Sheave

Technical Specifications

• MPN: MBL77
• Material: Cast Iron
• Number of Grooves: 1
• Bore: 1/2 to 1-1/2 inches
• Outer Diameter: 7-3/4 inches
• Pitch Diameter: 7.35 inches (A/4L) / 7.75 inches (B/5L)
• Face Width: 29/32 inches
• Bushing: MBL
• Overall Length: 1.438 inches
• Belt Size: 4L, 5L, A, B
• Item Weight: 3.95 lbs per EA
