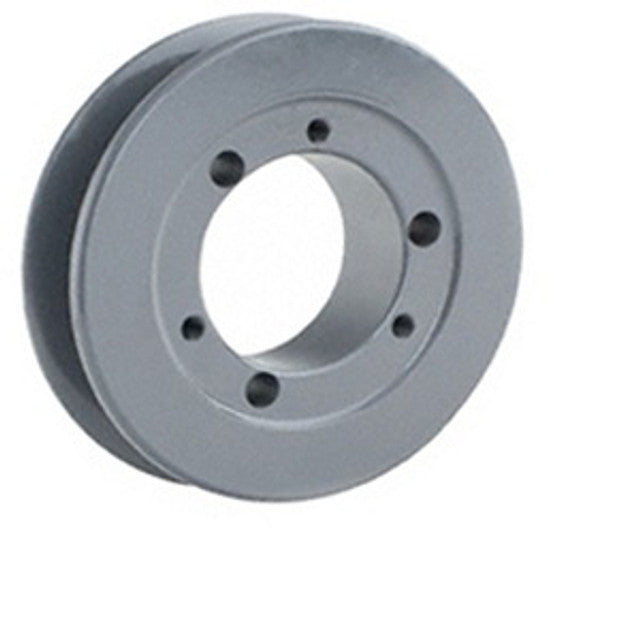

MASKA MBL52 Fixed Pitch Sheave

Product Description

The MASKA MBL52 is a fixed pitch sheave that supports A or B belts. This component is made for light-duty tasks and comes equipped with a groove bushing type. It has an outer diameter measuring five point two inches and requires an LX type bushing for installation.

• Designed for A or B belts
• Groove bushing type included
• Outer diameter of five point two inches

Product Highlights

This sheave is suitable for various light-duty applications.

Product Information

Standard Information

• Manufacturer Part Number: MBL52
• Type: Fixed Pitch Sheave

Technical Specifications

• Diameter: 5.2 inches (OD)
• Belt Compatibility: A or B belt (requires LX type bushing)
• Weight: 3.00 lbs
• Duty Type: Light Duty
• Bore: 1/2 to 1-1/2 inches
• Pitch Diameter: 4.85 inches (A/4L) / 5.25 inches (B/5L)
• Face Width: 29/32 inches
• Bushing: MBL Bushing
• Overall Length: 1.438 inches
• V-Belt Cross Section: A-B, 4L, and 5L
• Material: Cast Iron
