MASKA 2MBL67 Fixed Pitch Sheave

Product Description

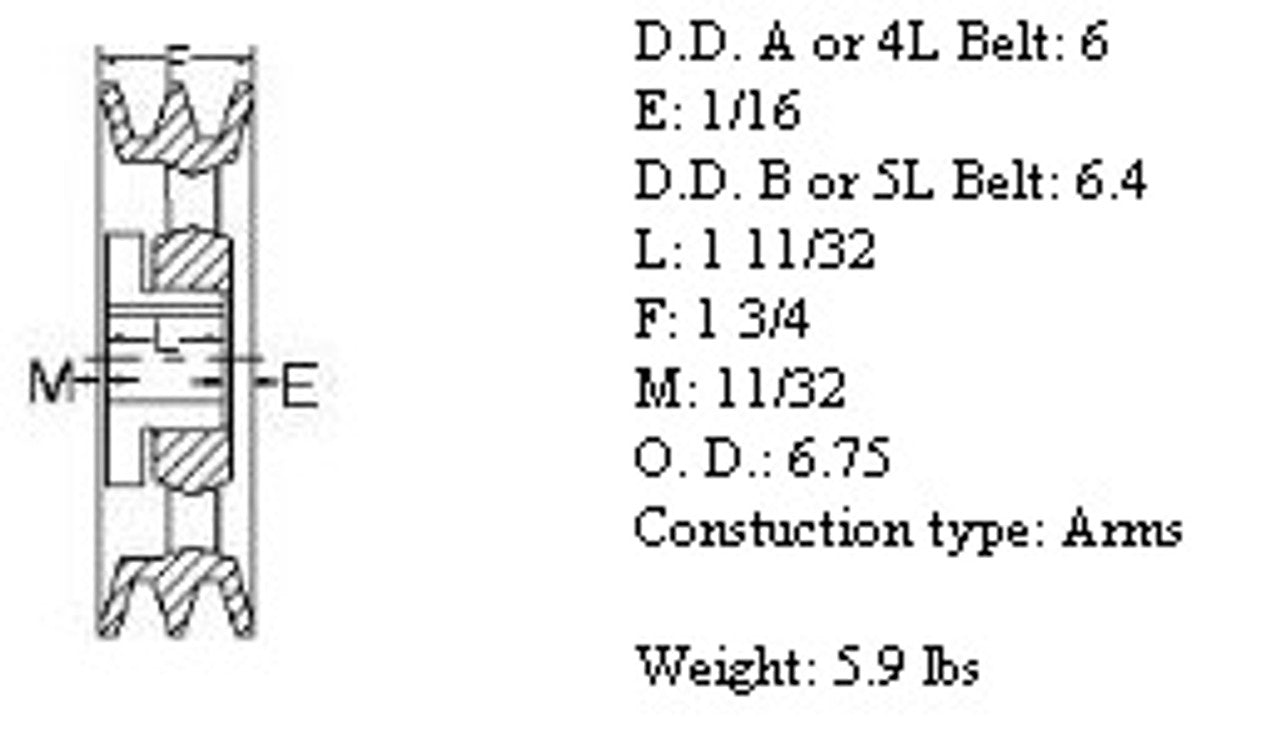

The MASKA 2MBL67 is a fixed pitch sheave suitable for A (4L) and B (5L & 5V) belts. This sheave is made from cast iron and is designed with two grooves. A Type L QD bushing is required for installation. The outer diameter measures six point seventy-five inches. For A belts, the pitch diameter is six inches, while for B belts, it is six point four inches. It is categorized as a rim only type sheave.

• Compatible with A (4L) and B (5L & 5V) belts
• Includes two grooves for enhanced performance
• Requires Type L QD bushing for easy installation

Product Highlights

This sheave provides reliable operation in light-duty applications and is built for durability.

Product Information

Standard Information

• Brand: MASKA
• MPN: 2MBL67

Technical Specifications

• Sheave Type: Fixed Pitch
• Grooves: Two Groove
• Outer Diameter: 6.75 inches
• Belt Compatibility: A (4L), B (5L & 5V)
• Pitch Diameter for 4L or A Belt: 6.0 inches
• Pitch Diameter for 5L or B Belt: 6.4 inches
• Bushing Type: Type L QD
• Material: Cast Iron
• Weight: 5.90 lbs per EA
• Type: Light-Duty Type 6A
