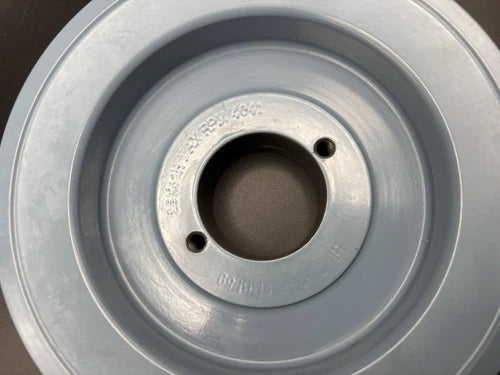

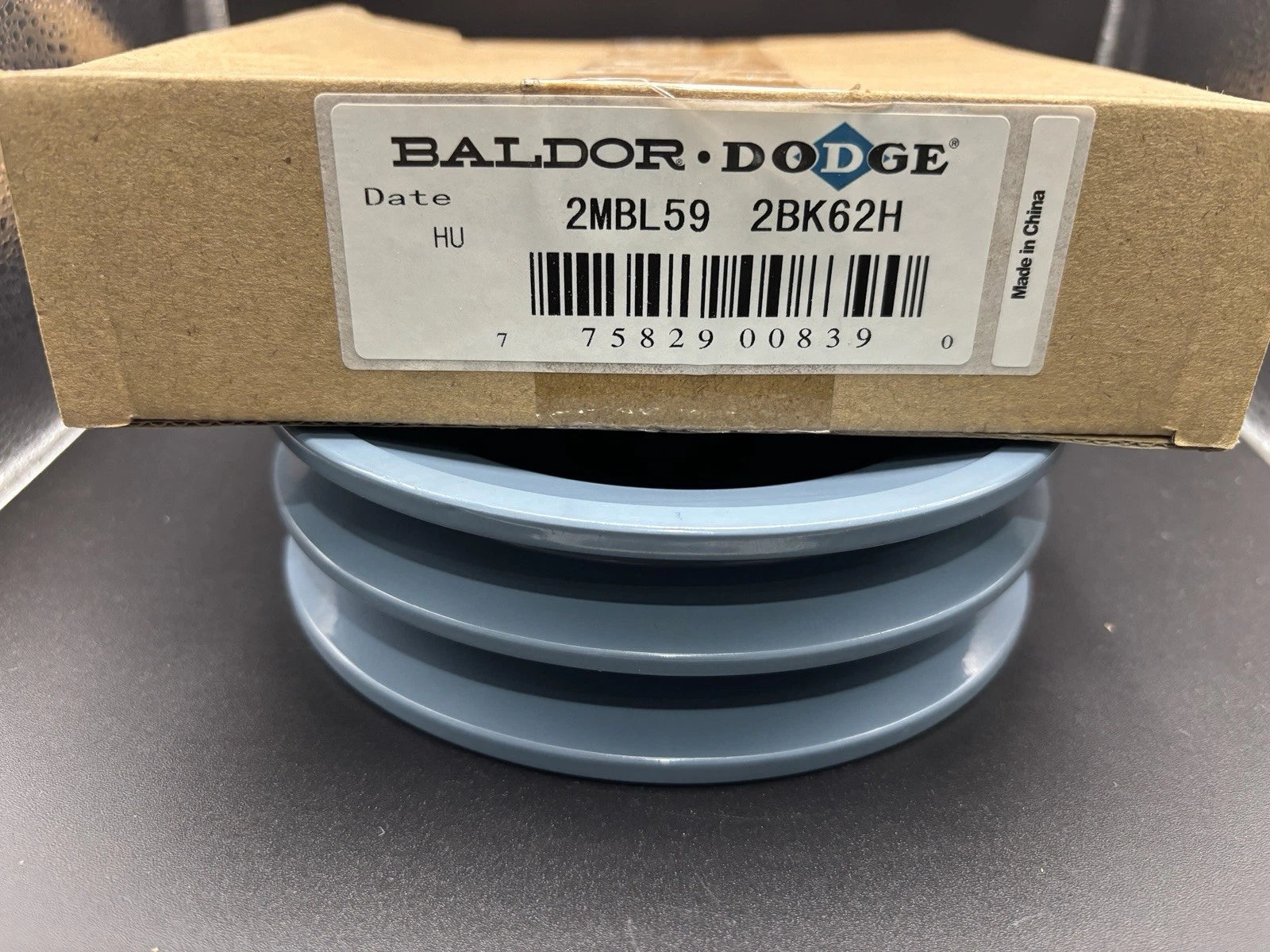

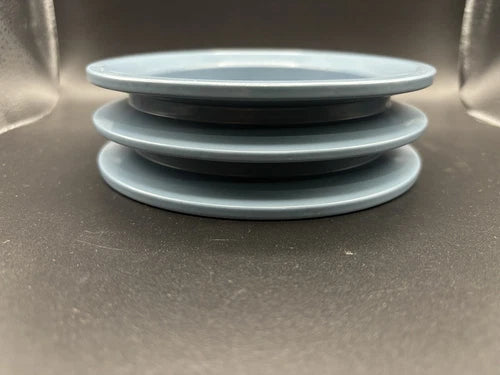

MASKA 2MBL59 Fixed Pitch Sheave

Product Description

The MASKA 2MBL59 is a fixed pitch sheave designed for light-duty applications. It is compatible with A (4L) and B (5L & 5V) belts. This sheave features two grooves and is made from durable cast iron. The outer diameter of this sheave is five point ninety-five inches.

• Compatible with A (4L) and B (5L & 5V) belts
• Constructed from cast iron for durability
• Two-groove design

Product Highlights

This product provides reliable performance in various light-duty applications while ensuring compatibility with popular belt types.

Product Information

Standard Information

• Manufacturer Part Number: 2MBL59
• Type: Fixed Pitch Sheave

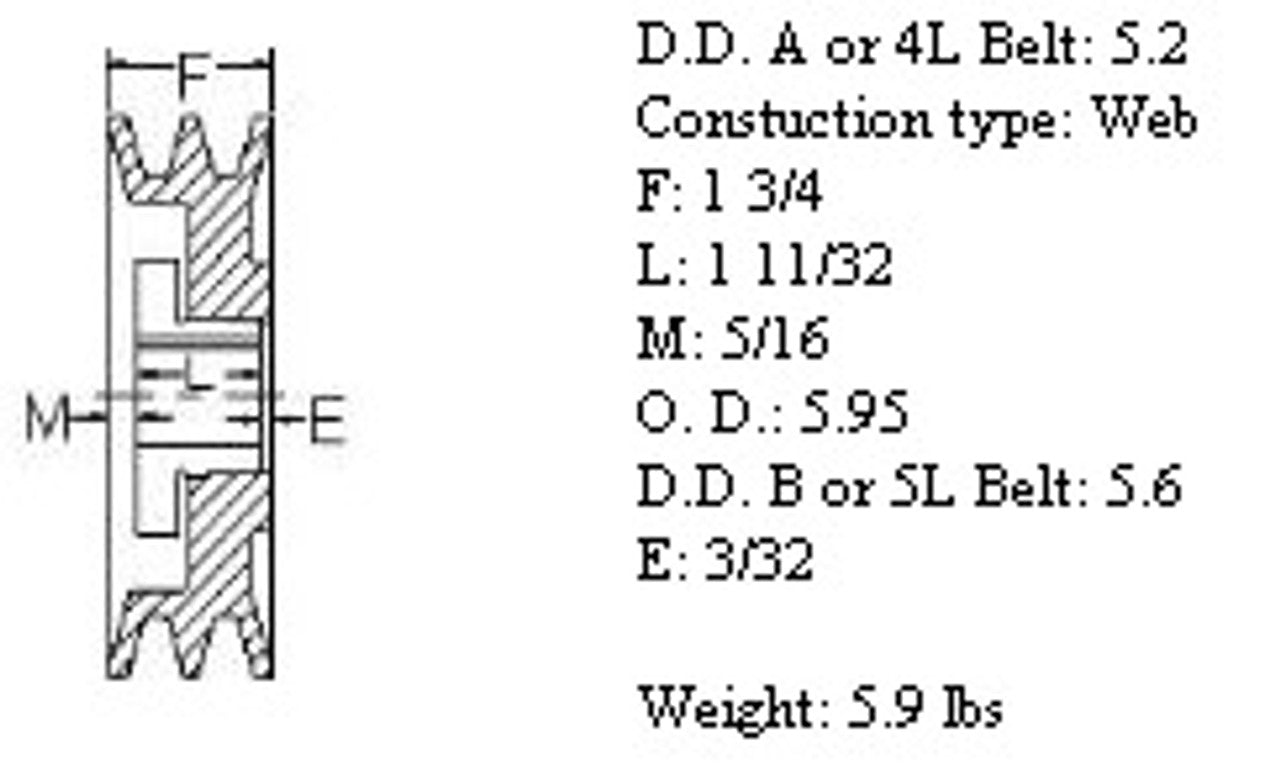

Technical Specifications

• Outside Diameter: 5.95 inches
• Belt Compatibility: A (4L), B (5L & 5V)
• Pitch Diameter for 4L or A Belt: 5.2 inches
• Pitch Diameter for 5L or B Belt: 5.6 inches
• Number of Grooves: Two Groove
• Bushing Type: Type L QD Bushing
• Material: Cast Iron
• Sheave Type: Light-Duty Type 4W
• Bore Diameter: 1/2 to 1-1/2 inches
• Face Width: 1-3/4 inches
• Bushing: MBL Bushing
• Item Weight: 5.90 lbs per EA
