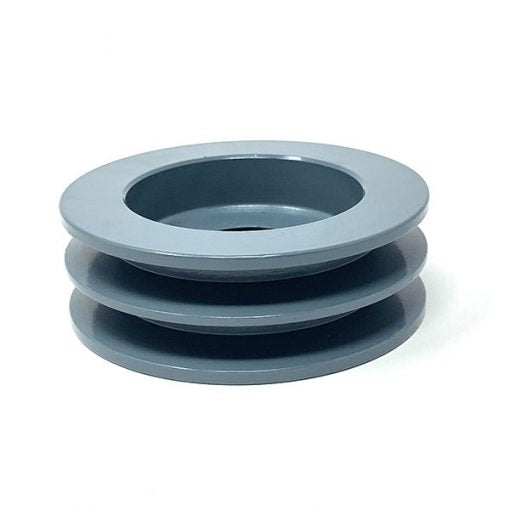

MASKA 2MBL54 Fixed Pitch Sheave

Product Description

The MASKA 2MBL54 is a fixed pitch sheave made for use with A (4L), B (5L and 5V) belts. It features two grooves and needs a Type L QD bushing for installation. Made from cast iron, it is built for durability in various applications.

• Compatible with A (4L) and B (5L & 5V) belts
• Constructed from durable cast iron
• Requires a Type L QD bushing for installation

Product Highlights

This sheave is designed for reliable performance in pulley systems. Its two grooved design allows for smooth belt operation, making it suitable for different machining and operational needs.

Product Information

Standard Information

• Brand: MASKA
• MPN: 2MBL54

Technical Specifications

• Sheave Type: Two Groove
• Outer Diameter: 5.45 inches
• Pitch Diameter for 4L or A Belt: 4.7 inches
• Pitch Diameter for 5L or B Belt: 5.1 inches
• Material: Cast Iron
• Bushing Type: L QD
• Belt Compatibility: A (4L), B (5L & 5V)
• Grooves: Two Groove (Rim only)
• Weight: 5.400 lbs
• Dimensions: 6.00 x 6.00 x 2.00 inches
