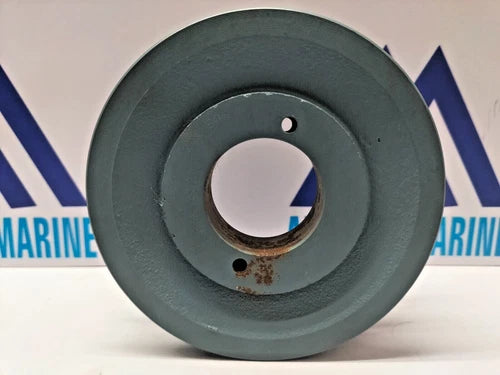

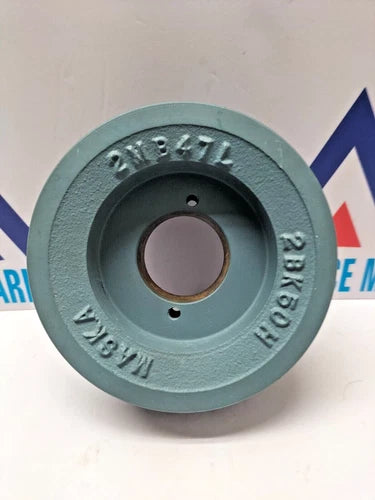

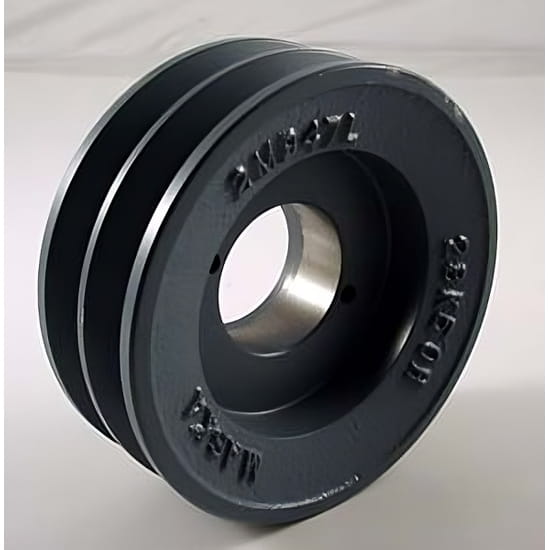

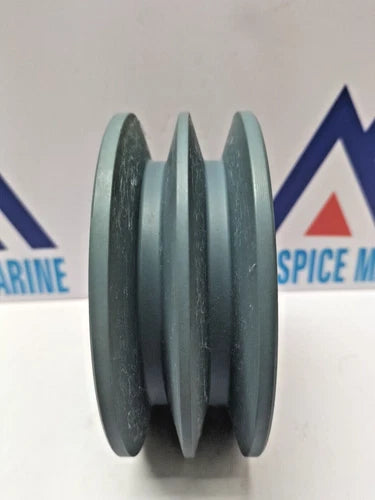

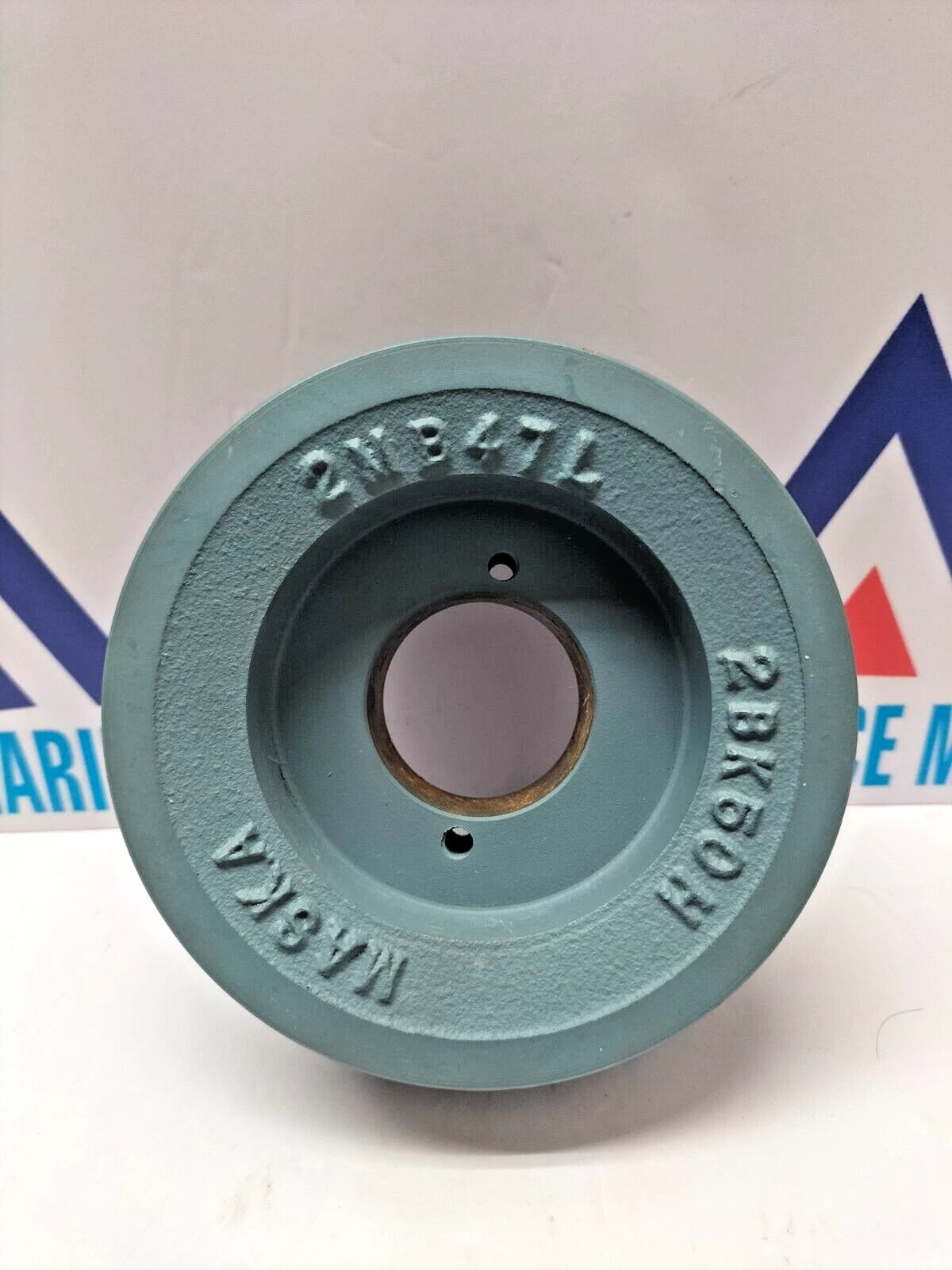

MASKA 2MBL47 Fixed Pitch Sheave

Product Description

The MASKA 2MBL47 is a fixed pitch sheave that accommodates A (4L) and B (5L & 5V) belts. It features a two-groove design and requires a Type L QD bushing. This sheave has an outer diameter of four point seventy-five inches and a belt pitch diameter of four point zero inches for 4L or A belts and four point four inches for 5L or B belts. Constructed from durable cast iron, this sheave is designed for reliability and efficiency in power transmission.

• Designed for A (4L) and B (5L & 5V) belts.
• Two-groove design (rim only).
• Constructed from robust cast iron.

Product Highlights

The MASKA 2MBL47 fixed pitch sheave is ideal for various industrial applications, ensuring effective belt operation and longevity.

Product Information

Standard Information

• Brand: MASKA
• MPN: 2MBL47

Technical Specifications

• Type: Fixed Pitch Sheave
• Outer Diameter: 4.75 inches
• Belt Pitch Diameter (4L or A): 4.0 inches
• Belt Pitch Diameter (5L or B): 4.4 inches
• Grooves: Two Groove (Rim only)
• Bushing Type: L QD
• Material: Cast Iron
• Sheave Type: Two Groove
