MASKA 1VP50X1-1/8 Variable Pitch Sheave

Product Description

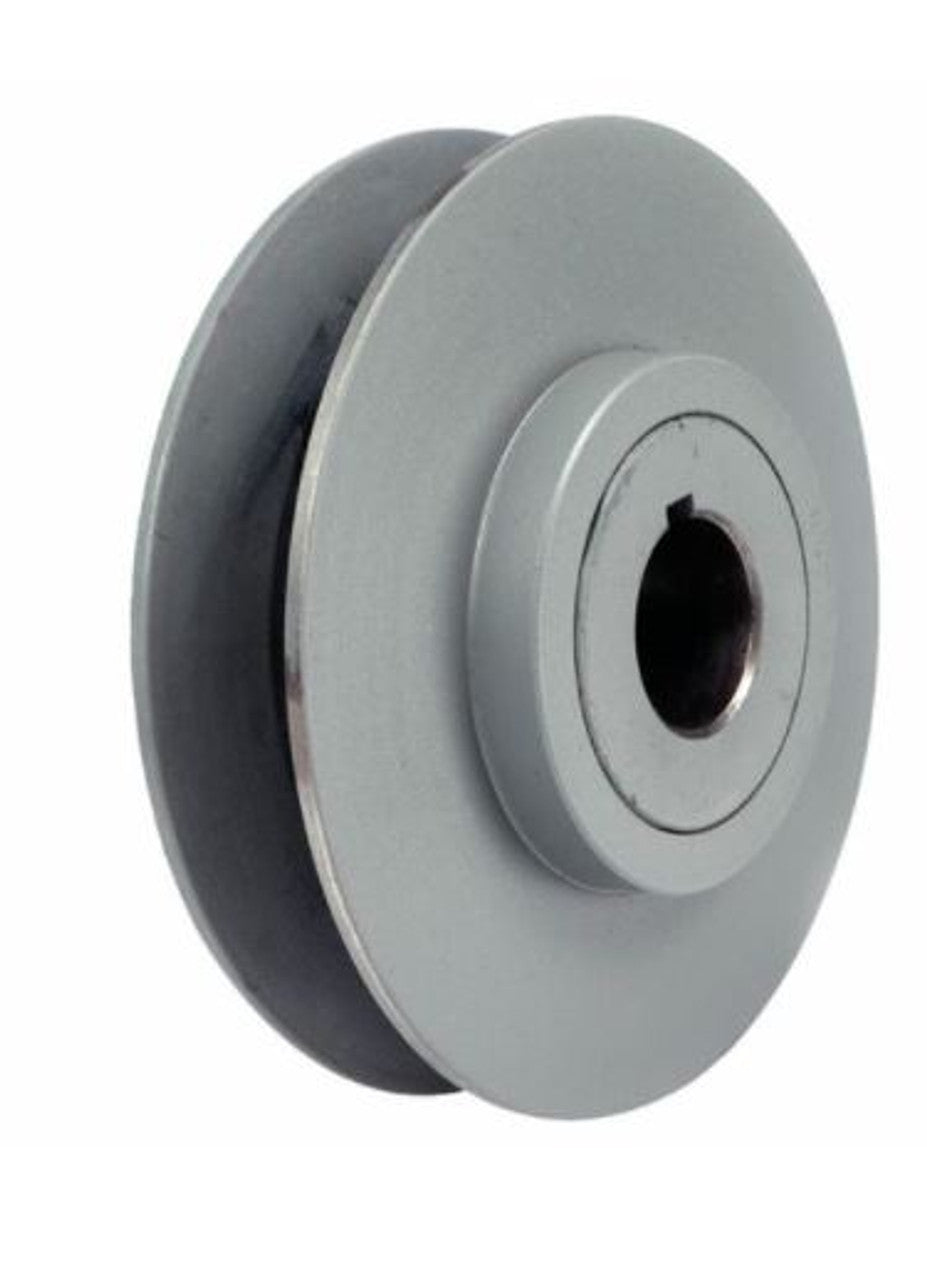

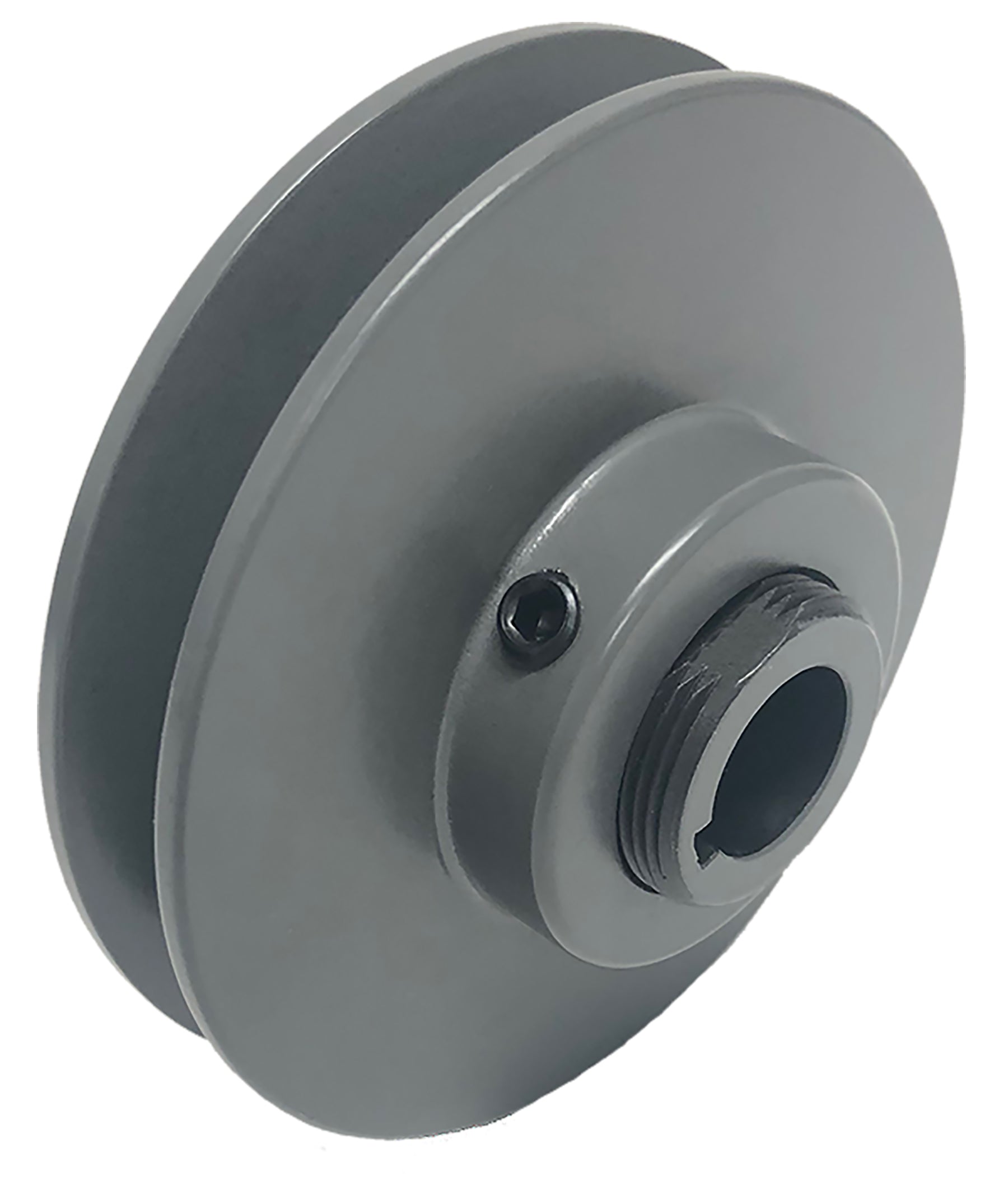

The MASKA 1VP50X1-1/8 is a variable pitch sheave with a bore diameter of one and one-eighth inches. This product features a single groove design and is made from durable cast iron. It is compatible with 3L, A (4L), and B (5L) V-belts. The adjustable pitch via a screw flange allows for flexibility in speed range.

• Single groove sheave.
• Constructed from cast iron.
• Compatible with 3L, A (4L), and B (5L) V-belts.

Product Highlights

This sheave is designed for effective pulley applications and can be customized for various speed requirements.

Product Information

Standard Information

• MPN: 1VP50X1-1/8
• Sheave Type: VP

Technical Specifications

• Type: Type 2, Variable Pitch-Fixed Bore Pulley
• Material: Cast Iron
• Number of Grooves: 1
• Bore Diameter: 1-1/8 inches
• Outside Diameter: 4.750 inches
• Face Width: 3/4 to 1-1/8 inches
• Overall Length: 1.875 inches
• Weight: 5.00 lbs
• Suitable For Use With: 3L/A, 4L/B, 5L Cross Section Belts
