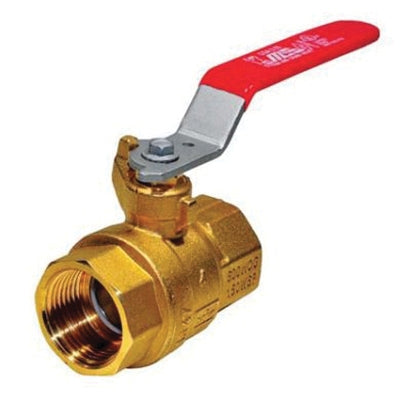

MAS B-3-LL.14 Ball Valve 2-Piece Full Port

Product Description

The MAS B-3-LL.14 is a reliable two-piece ball valve designed for various plumbing applications. This full port ball valve features a locking lever handle for secure operation, ideal for preventing accidental valve movement. Made of brass, this valve is durable and robust, constructed to withstand up to six hundred psi WOG pressure.

• Blowout-proof stem
• Adjustable packing gland
• Steel lever screw with brass components

Product Highlights

This valve meets multiple industry standards, ensuring safety and performance in your system.

Product Information

Standard Information

• Brand: MAS
• Manufacturer: M.A. Stewart & Sons Ltd

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 1/4 in
• Connection Type: FNPT
• Dimension: 1.73 in L
• Flow Coefficient: 8 Cv
• Item Name: Ball Valve with Locking Lever Handle
• Material Specifications: ASTM A36, ASTM B124, C37700, ASTM B283
• Model: B-3-LL
• Operator Type: Steel Lever Handle
• Packaging Material: PTFE
• Pressure Class: Class 150
• Pressure Rating: 600 psi WOG
• Seat Material: PTFE
• Series: B
• Stem Material: Brass
• Temperature Rating: -40 to 120 deg F
• Type: 2-Piece, Full Port
