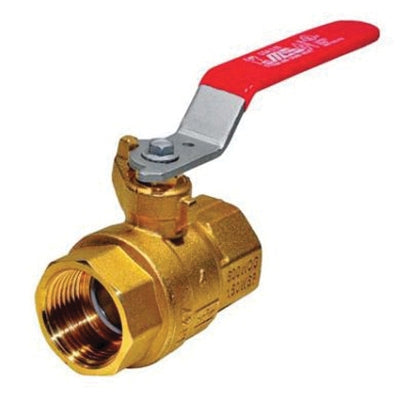

MAS B-3-LL.112 Ball Valve with Locking Lever Handle 1-1/2 in

Product Description

The MAS B-3-LL.112 is a two-piece, full port ball valve featuring a locking lever handle. It is designed for reliable performance in various plumbing applications. This valve has a connection size of one and a half inches and utilizes female national pipe thread for installation.

• Blowout-proof stem
• Adjustable packing gland
• Steel lever handle with brass components

Product Highlights

This valve meets ANSI and ASME standards for pressure handling and is suitable for a variety of environments.

Product Information

Standard Information

• Brand: MAS
• Manufacturer: M.A. Stewart & Sons Ltd

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 1-1/2 inches
• Connection Type: FNPT
• Dimensions: 3.79 inches length
• Flow Coefficient: 130 Cv
• Item Name: Ball Valve with Locking Lever Handle
• Material Specifications: ASTM A36, ASTM B124, C37700, ASTM B283
• Material: Brass
• Model: B-3-LL
• Operator Type: Steel Lever Handle
• Packaging Material: PTFE
• Pressure Class: Class 150
• Pressure Rating: 600 psi WOG
• Seat Material: PTFE
• Series: B
• Stem Material: Brass
• Temperature Rating: -40 to 120 degrees F
• Type: 2-Piece, Full Port
