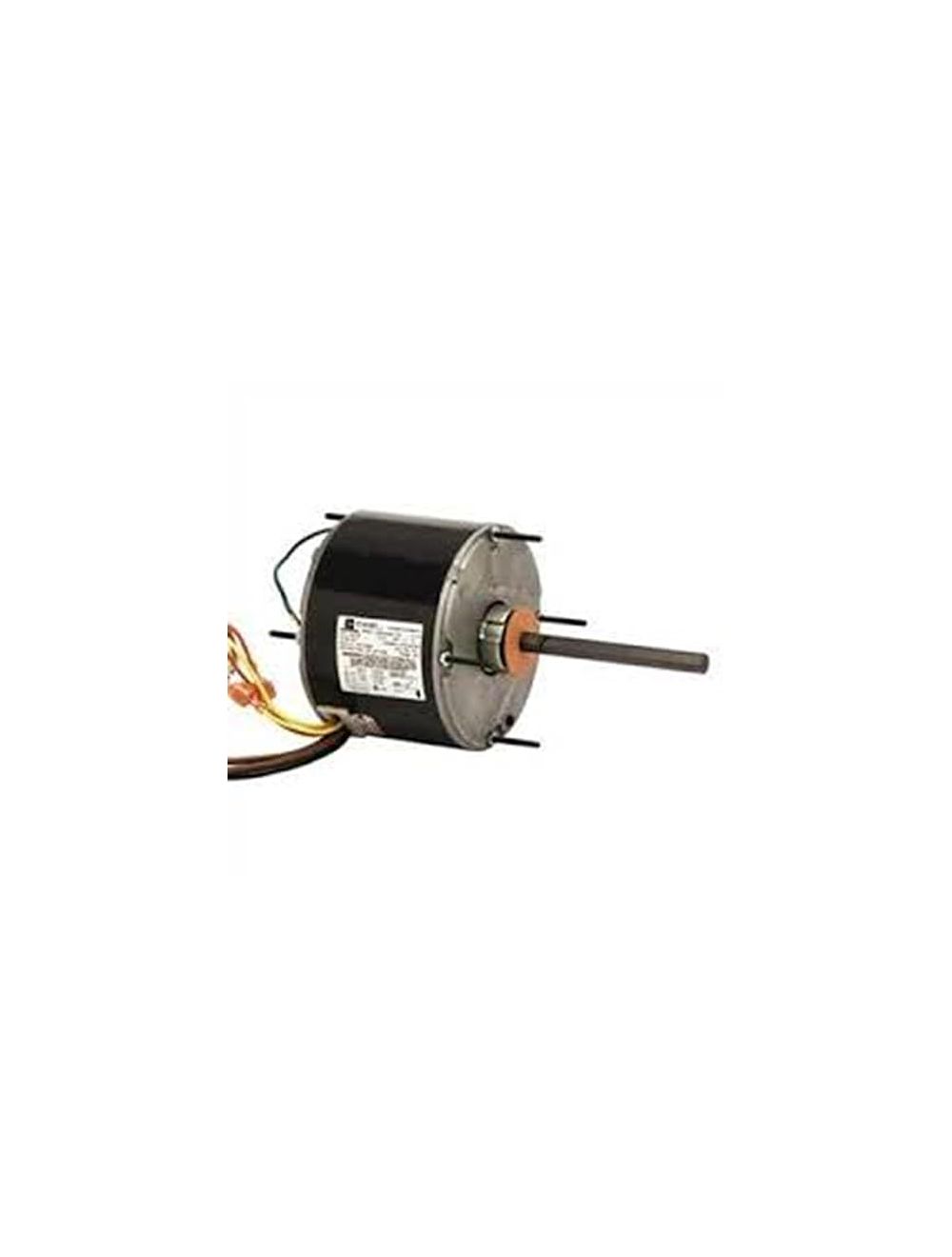

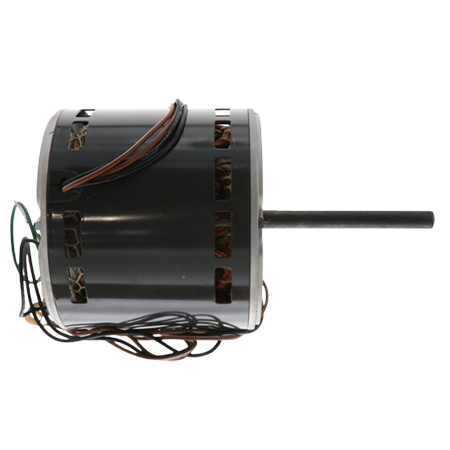

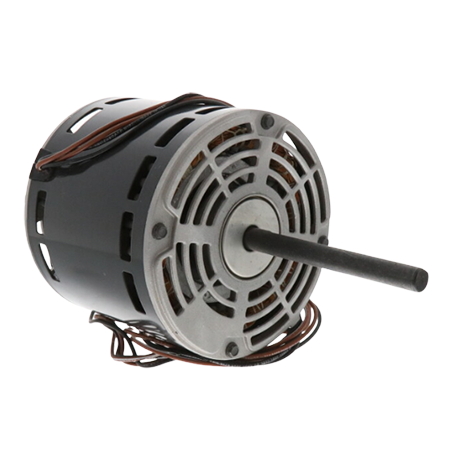

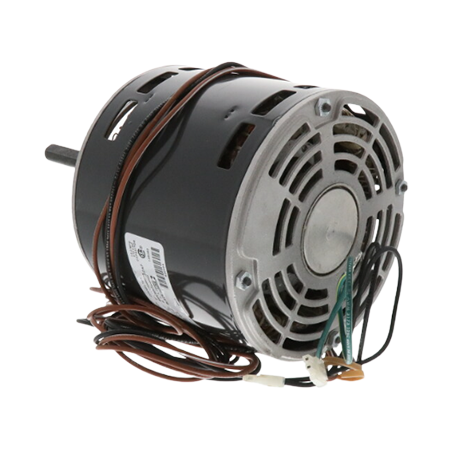

MARVAIR 40098A-SP Single Phase Motor 1/3 Horsepower

Product Description

The MARVAIR 40098A-SP is a reliable single-phase motor suitable for air conditioning systems. This motor operates efficiently on 208 to 230 volts at a frequency of 50/60 Hertz. With a power rating of 1/3 horsepower, it provides the necessary force for airflow circulation within duct systems. The motor features two operational speeds, supporting rotation speeds of eight hundred twenty-five and seven hundred RPM. It is CSA-certified, ensuring compliance with safety standards. This motor serves as a direct replacement for part numbers 40098, 40098-SP, and 40098A-SP.

• Single-phase motor operating on 208-230 volts
• Power rating of 1/3 horsepower
• Two speed options: 825 RPM and 700 RPM

Product Highlights

Durable and efficient for air conditioning applications, ideal for HVAC technicians.

Product Information

Standard Information

• Brand: MARVAIR
• MPN: 40098A-SP

Technical Specifications

• Manufacturer: NIDEC MOTOR CORPORATION
• Horsepower: 1/3 Hp
• Input Voltage: 208 to 230V
• Number of Phases: 1
• RPM: 825/700 RPM
• Number of Speeds: 2
• Frame Size: 48Y
• Approvals: CSA-certified
• OEM Part Number: K55HXRGT-1953J
• Weight: 16.00 lbs
