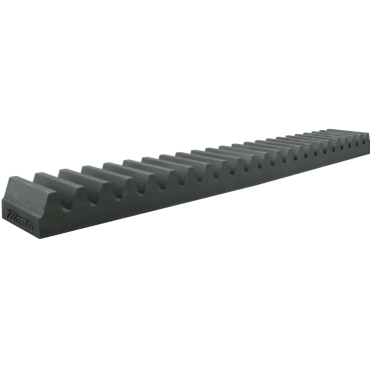

Martin TR6X4 Steel Gear Rack 20 Degree Pitch 4 Feet Long

Product Description

The Martin TR6X4 Steel Gear Rack is designed for applications where reliable gear engagement is crucial. This rack measures four feet in length and features a face width of one and a half inches. The diametral pitch is six with a pressure angle of twenty degrees.

• Made from low carbon cold drawn steel
• Available in various lengths and pressure angles
• Compatible with pinions from spur gear section

Product Highlights

The Martin TR6X4 provides a robust solution for precision mechanical motion control.

Product Information

Standard Information

• Brand: Martin
• Part Number: TR6X4

Technical Specifications

• Face Width: 1.5 inches
• Length: 4 feet
• Diametral Pitch: 6
• Material: Steel
• Pressure Angle: 20 degrees
• Overall Thickness: 1.5 inches
• Weight: 26.84 lbs
• EAN or UPC: 697950059211
• Pitch Line to Back: 1.333 inches
