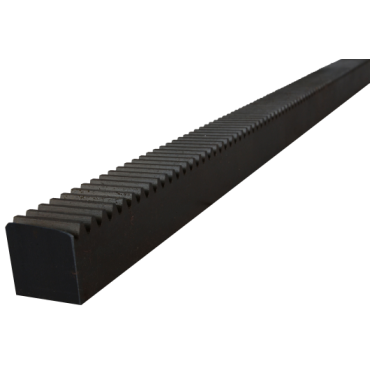

Martin TR16X4 Steel Gear Rack - 16 Diametral Pitch, 20 Pressure Angle, 0.5 in Width, 4 ft Long

Product Description

The Martin TR16X4 Steel Gear Rack is made from low carbon cold drawn steel. It features a diametral pitch of sixteen and a pressure angle of twenty degrees. This gear rack is designed to provide reliable performance in various mechanical applications. It is available in four-foot lengths and is ideal for those needing precise movement in gear systems.

• Made from low carbon cold drawn steel
• Length of four feet
• Compatible with pinions from the spur gear section

Product Highlights

Designed for various applications, this gear rack allows for cutting and machining. Special racks can be provided in different materials and sizes.

Product Information

Standard Information

• Brand: Martin
• MPN: TR16X4

Technical Specifications

• Diametral Pitch: 16
• Pressure Angle: 20 degrees
• Face Width: 0.5 inches
• Length: 4 feet
• Material: Steel
• Overall Thickness: 0.5 inches
• Weight: 2.96 lbs
• EAN or UPC: 697950059693
• Pitch Line to Back: 0.438 inches
