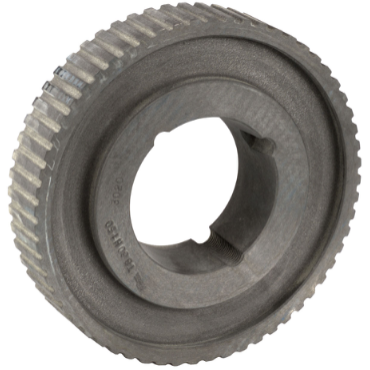

Martin TB24L050 Bushing Bore Timing Belt Pulley - 0.3750 in Pitch, 24 Tooth, 2.835 in OD, 0.5000 in Belt Width

Product Description

The Martin TB24L050 is a bushing bore timing belt pulley designed for intricate power transmission tasks. With a pitch of 0.3750 inches and a total of 24 teeth, it efficiently manages the driving speed required in various applications. This product has an outside diameter of 2.835 inches and a belt width of 0.5000 inches.

• Durable steel construction for longevity
• Compatible with taper lock bushings
• Ideal for a wide range of load capabilities

Product Highlights

This timing belt pulley is built for positive slip-proof engagement, ensuring reliability under variable loads and operating conditions.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Pitch: 0.3750 inches
• Material: Steel
• Belt Type: L
• Bore Type: Taper Lock Bushed
• Belt Width: 0.5000 inches
• Outside Diameter: 2.835 inches
• Number of Teeth: 24
• Hub Diameter: 2.25 inches
• Hub Projection: 0.25 inches
• Face Width: 3/4 inches
