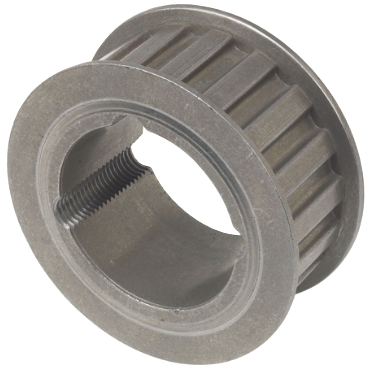

Martin TB24H200 Taperlock Bushed Timing Pulley - 0.5000 in Pitch, 24 Tooth, 3.766 in OD, 2.0000 in Width

Product Description

The Martin TB24H200 Taperlock Bushed Timing Pulley is designed for precise engagement with timing belts. This pulley minimizes friction between the belt teeth and grooves. It ensures smooth operation and improved performance in power transmission systems.

• Belt Width: 3 inches
• Number of Teeth: 24
• Outside Diameter: 3.766 inches

Product Highlights

This timing pulley is suitable for various applications where reliable belt engagement is required. Its design helps reduce wear and enhance the life of both the pulley and the belt.

Product Information

Standard Information

• Brand: Martin
• MPN: TB24H200

Technical Specifications

• Belt Size: H
• Belt Pitch: 0.5 inches
• Material: Steel
• Bushing Type: Taper-Lock
• Bore Type: Bushed
• Hub Type: A
• Weight: 2.8 lbs
• Bore Range: 0.5 to 2 inches
• Length Through Bore: 1.25 inches
• Hub Projection: 0.546 inches
• Pitch Diameter: 3.82 inches
• Width Across Teeth: 2.093 inches
• Finished Bore: N/A
