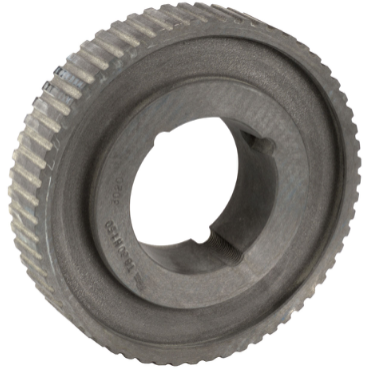

Martin TB22L075 Taperlock Bushed Timing Pulley

Product Description

The Martin TB22L075 is a Taperlock bushed timing pulley. It features a robust design for reliable performance in mechanical power transmission systems. Timing pulleys feature grooves on their periphery to engage with the teeth of timing belts. This minimizes friction and wear during operation. For effective use, a flanged pulley is recommended to prevent belt misalignment.

• 0.38 inch belt pitch
• 1 inch belt width
• 22 teeth with an outside diameter of 2.596 inches

Product Highlights

This pulley is suitable for various industrial applications and provides a stable drive solution in synchronous timing systems.

Product Information

Standard Information

• Brand: Martin
• MPN: TB22L075

Technical Specifications

• Bore Range [Min]: 0.5 inch
• Bore Range [Max]: 1 inch
• Hub Projection: 1/8 inch
• Pitch Diameter: 2.626 inch
• Belt Pitch: 0.38 inch
• Length Through Bore: 0.875 inch
• Hub Type: A
• Material: Steel
• No. of Teeth: 22
• Weight: 0.9 LB
• Bushing Type: Taper-Lock
• Bushing Series: 1008
• Outside Dia.: 2.596 inch
• Width Across Teeth: 0.812 inch
