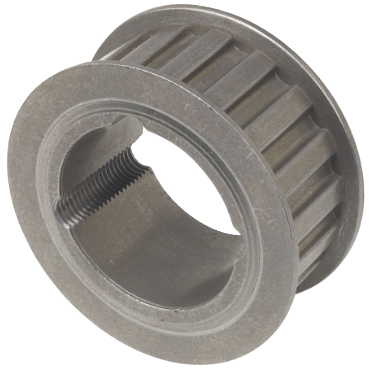

Martin TB22H200 Taperlock Bushed Timing Pulley - 0.5 in Pitch, 22 Tooth, 3.447 in OD, 2 in Belt Width

Product Description

The Martin TB22H200 is a Taperlock Bushed Timing Pulley designed for use in synchronous drive systems. It features a pitch of zero point five inches, twenty-two teeth, and an outside diameter of three point four four seven inches. This pulley is critical for ensuring a stable connection between the pulley and timing belt, reducing friction and enhancing operational efficiency.

• Belt pitch of zero point five inches
• Outer diameter of three point four four seven inches
• Two inch belt width

Product Highlights

The TB22H200 is suitable for a variety of mechanical applications and is built for durability and reliability. It requires a Taper-Lock bushing for installation.

Product Information

Standard Information

• Brand: Martin
• MPN: TB22H200

Technical Specifications

• Bore Range [Max]: one point six two five inches
• Bore Range [Min]: zero point five inches
• Hub Type: A
• Belt Width: two inches
• Material: Steel
• Belt Size: H
• Bushing Series: 1615
• Bushing Type: Taper-Lock
