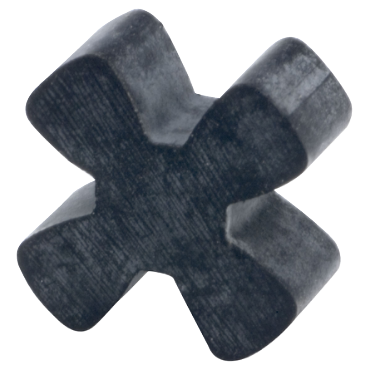

Martin SRL110 Jaw Type Coupling Insert 21.6 hp @ 1800 rpm

Product Description

The Martin SRL110 is a jaw type coupling insert designed for use in mechanical power transmission applications. This insert is made from Buna-N material and can handle up to 21.6 hp at 1800 rpm.

• Insert for Size 110 Jaw Coupling
• Made from Buna-N (Nitrile Rubber)
• Temperature range of -40 °F to 212 °F

Product Highlights

This coupling insert offers a sturdy design with a torque rating of 756 in lb and can withstand maximum speeds of 3600 rpm. Ideal for various industrial applications, this one-piece insert ensures reliability and efficiency.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100814125

Technical Specifications

• Coupling Size: 110
• Material: Buna-N (Nitrile Rubber)
• HP @ RPM: 21.6 hp @ 1800 rpm
• No. of Legs: 6
• Color: Black
• Temperature Range [Min]: -40 °F
• Outside Diameter: 3.3125 in
• Temperature Range [Max]: 212 °F
• RPM [Max]: 3600 rpm
• Torque Rating: 756 in lb
• Insert Style: One Piece
• Weight: 0.14 lb
• EAN or UPC: 697950149042
