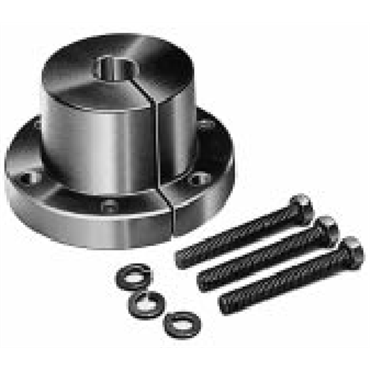

Martin SK40MM Quick Disconnect Bushing 40 mm Bore 3.875 in Flg OD 1.9375 LTB

Product Description

The Martin SK40MM is a quick disconnect bushing designed for efficient mechanical power transmission. This bushing features a bore diameter of forty millimeters and a flange outer diameter of three point eight seven five inches. The unit is suitable for various applications in mechanical systems.

• Heavy-duty ductile iron construction
• Compatible with numerous industrial setups
• Quick disconnect design for easy installation and removal

Product Highlights

The Martin SK40MM aids in smooth operation across several mechanical applications, ensuring durability and reliability.

Product Information

Standard Information

• Country Of Origin: United States
• Min Order Qty: 1

Technical Specifications

• Flange Outside Diameter: 3.875 in
• Length Through Bore: 1.9375 in
• Barrel Length: 1.375 in
• Screw Length: 2 in
• Barrel Diameter: 2.812 in
• Bore Diameter: 40 mm
• Flange Thickness: 0.5625 in
• Number Of Bolt Holes: 3
• Bolt Circle Diameter: 3-5/16 in
