MARTIN SK25MM PIPE FITTINGS

Martin SK25MM Quick Disconnect Bushing 25 mm Bore 3.875 in Flg OD 1.9375 LTB

Brand: MARTIN
SKU: SK25MM
Availability: Out Of Stock
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

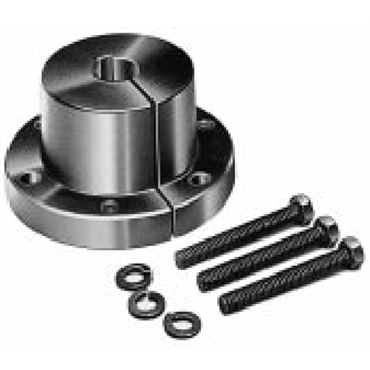

The Martin SK25MM Quick Disconnect Bushing is designed for efficient mechanical power transmission. This bushing has a bore diameter of twenty-five millimeters and a flange outside diameter of three point eight seven five inches. It features a length through bore of one point nine three seven five inches, making it suitable for various applications. The construction is primarily cast iron, which ensures durability.

  • Bushings are often used in industrial settings for ease of maintenance.
  • Compatible with a range of mechanical equipment.
  • Perfect for those needing reliable power transmission components.

Product Highlights

This bushing allows for quick disconnect, which simplifies the assembly and disassembly process in machinery.

Product Information

Standard Information

  • Brand: Martin
  • Country Of Origin: United States
Technical Specifications
MPN
SK25MM
Bore Diameter
25 mm
Flange Outside Diameter
3.875 inches
Length Through Bore
1.9375 inches
Barrel Length
1.375 inches
Barrel Diameter
2.812 inches
Flange Thickness
0.5625 inches
Number Of Bolt Holes
3
Bolt Circle Diameter
3-5/16 inches
MFR Catalog No
00540
