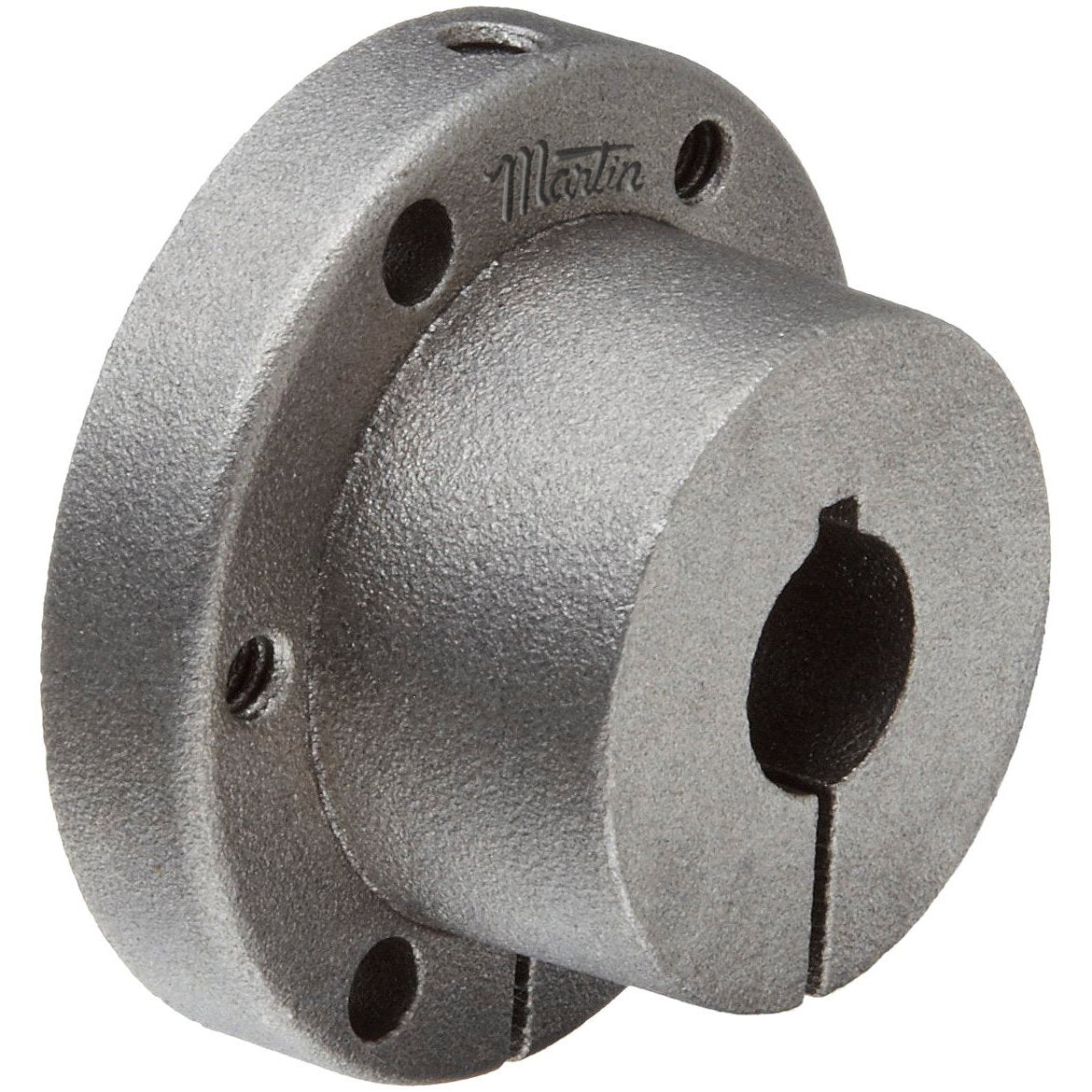

Martin SK111/16 Standard QD Bushing 1-11/16 in Dia Bore

Product Description

The Martin SK111/16 bushing is a quick detachable bushing suitable for mounting in various configurations. It has a bore diameter of 1-11/16 inches and is designed for durability in demanding applications.

• QD design for easy installation and removal
• Manufactured from high-strength steel
• Compatible with multiple manufacturers' bushings

Product Highlights

This bushing is ideal for mechanical systems that require efficient power transmission. Its robust design ensures longevity.

Product Information

Standard Information

• Brand: Martin
• Manufacturer: Martin Sprocket & Gear

Technical Specifications

• MPN: SK111/16
• Bore Diameter: 1-11/16 inches
• Barrel Diameter: 2.812 inches
• Flange Diameter: 3-7/8 inches
• Overall Length: 1.938 inches
• Hub Diameter: 4-1/2 inches
• Keyway Size: 3/16 x 3/8 inches
• Torque Rating: 7000 in-lb
• Number of Bolt Holes: 3
• Screw Size: 5/16-18 x 2 inches
• Flange Thickness: 0.563 inches
• Material: Steel
• Type: Standard
• Country of Origin: US
